Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

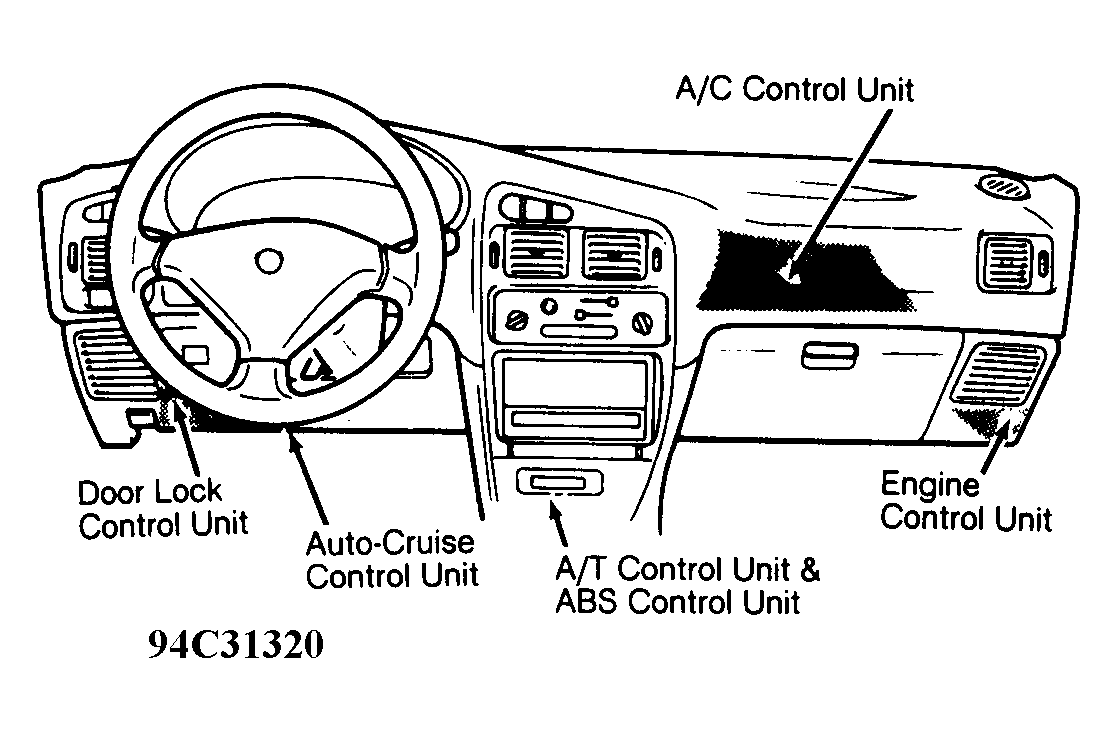

| ABS Control Unit | Behind center console. See Figure & 7. |
| Air Bag Control Unit (SRS) | Between front seats, behind parking brake lever. |
| A/C Control Unit | Behind glove box. See Figure . |
| A/T Control Unit (1.8L) | Behind center console. See Figure . |
| Auto-Cruise Control Unit | Under left side of dash, next to fuse/relay block. See Figure & 6. |
| Automatic Seat Belt Control Unit | Between front seats, behind parking brake lever. |
| Daytime Running Light Control Unit | On bracket, near power steering fluid reservoir. |
| Door Lock Control Unit | Behind left side of dash. See Figure . |
| Engine Control Unit | Under right side of dash, above kick panel. See Figure . |
| Keyless Entry Control Unit | Behind left quarter panel. |
