Eagle
>>
1994
>>
Talon FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Alternator
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Alternator

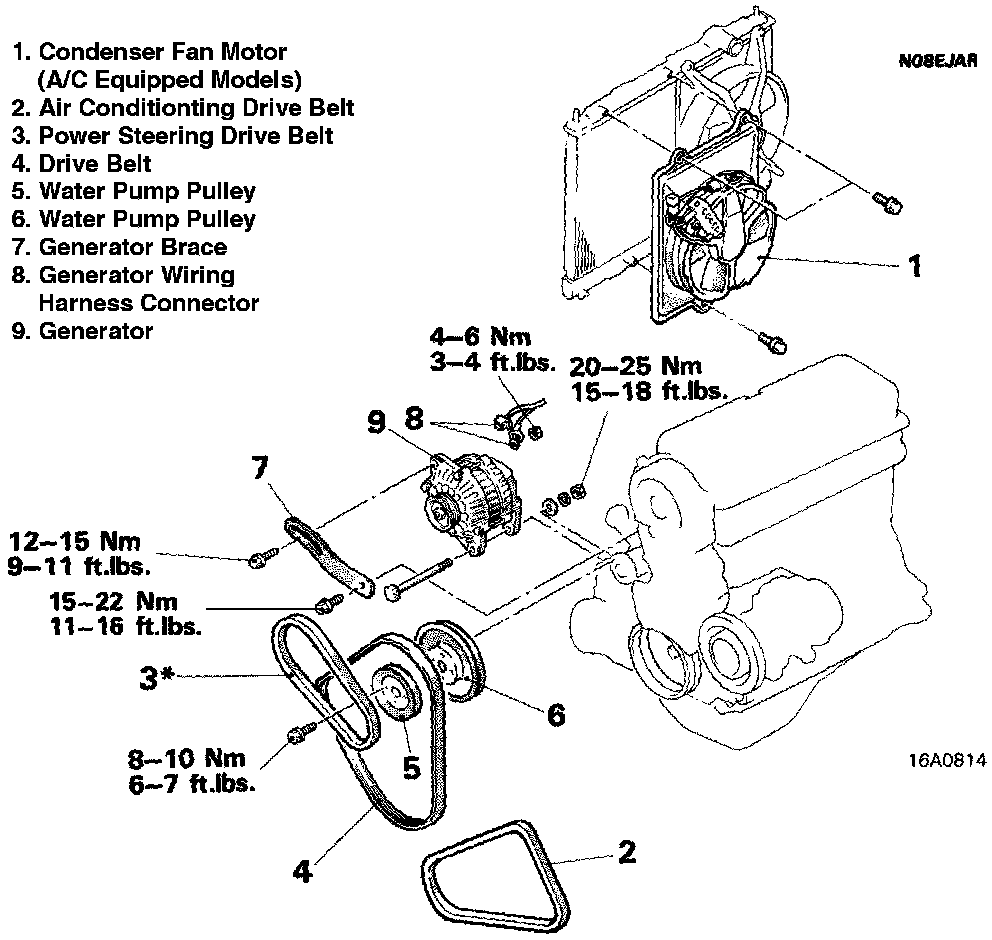

Generator Removal & Installation:

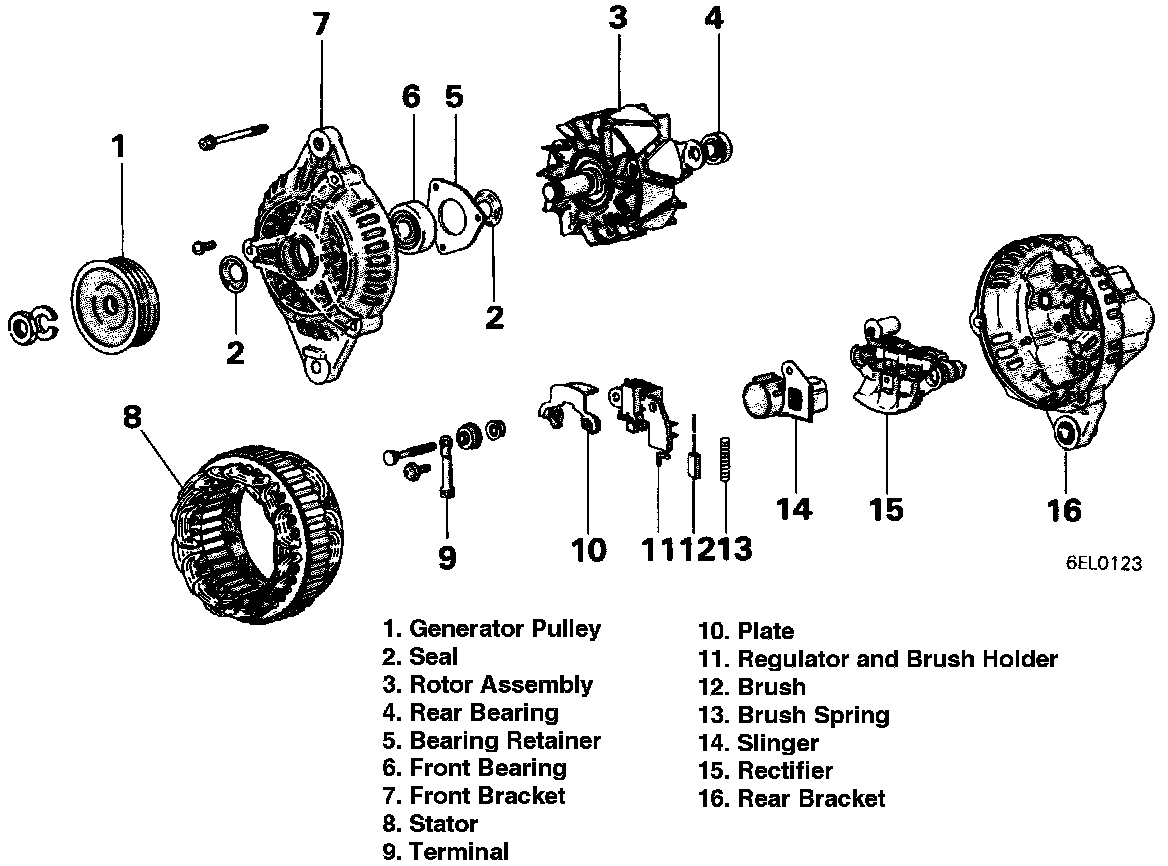

Generator Disassembly & Reassembly:
