Vehicle Speed Sensor: Service and Repair

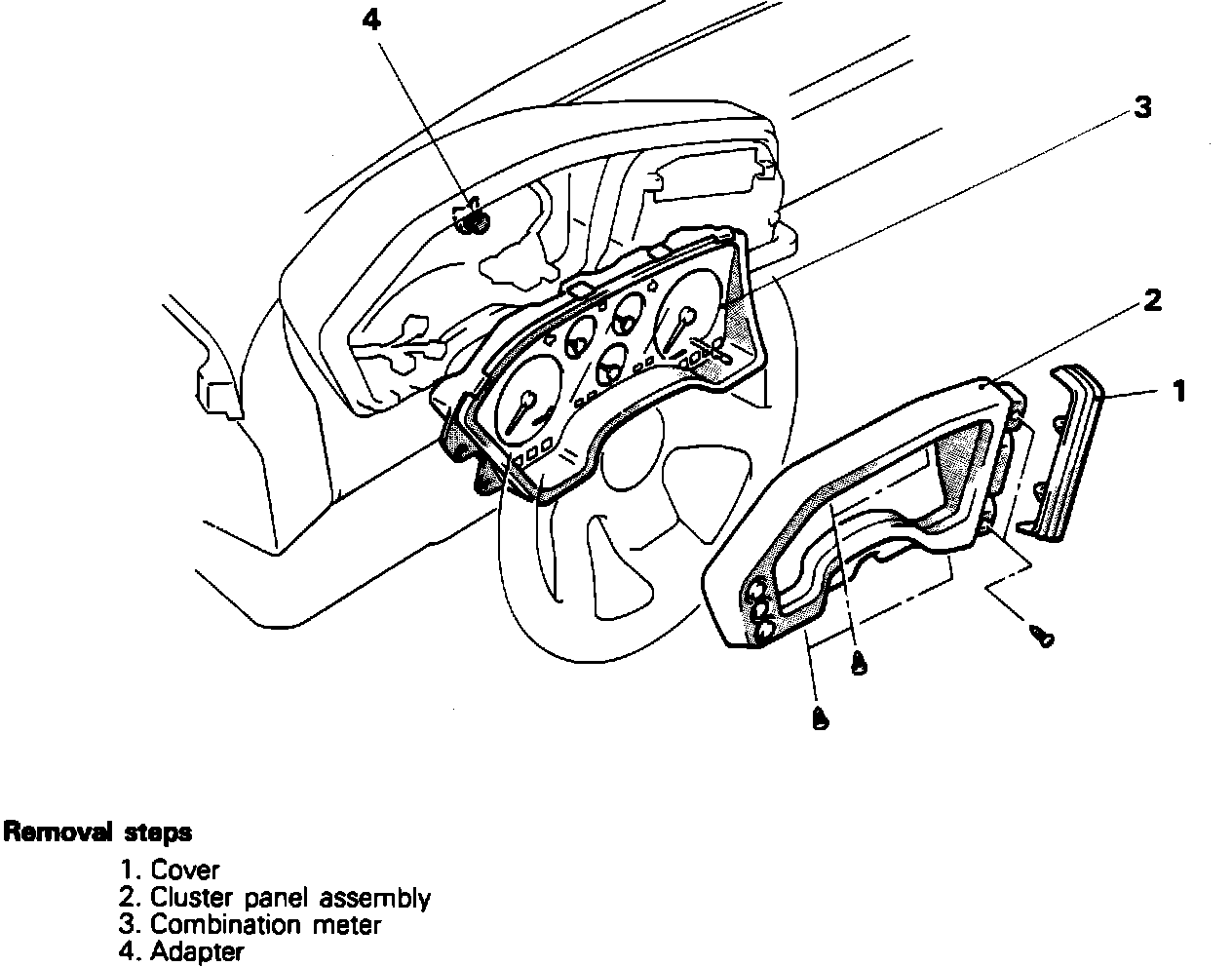

Instrument Cluster Removal:




Vehicle Speed Sensor (VSS) Location:






- The vehicle speed sensor is located within the speedometer head, and must be replaced as a complete assembly. Installation is the reverse of removal.
