Coolant Temperature Sensor

Engine Coolant Temperature Sensor:

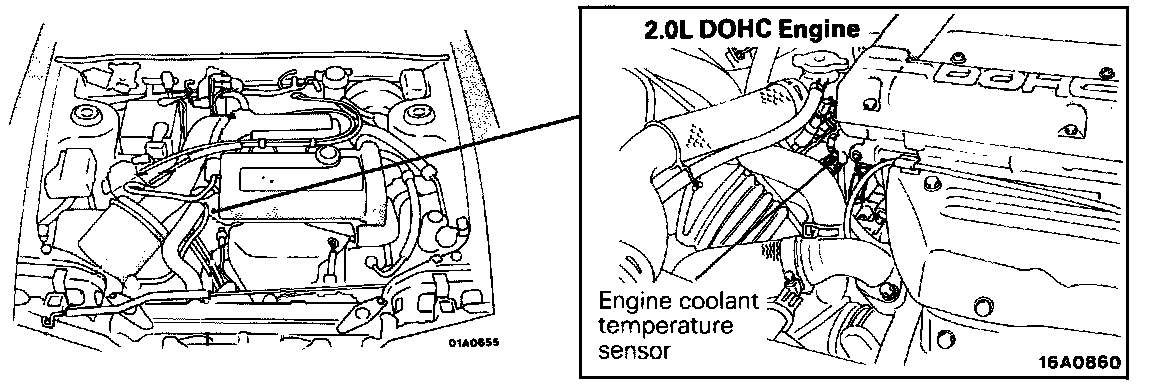

Engine Coolant Temperature Sensor Location:






Mounted in the thermostat housing, on the right side of the engine.
