Cruise Control: Service and Repair

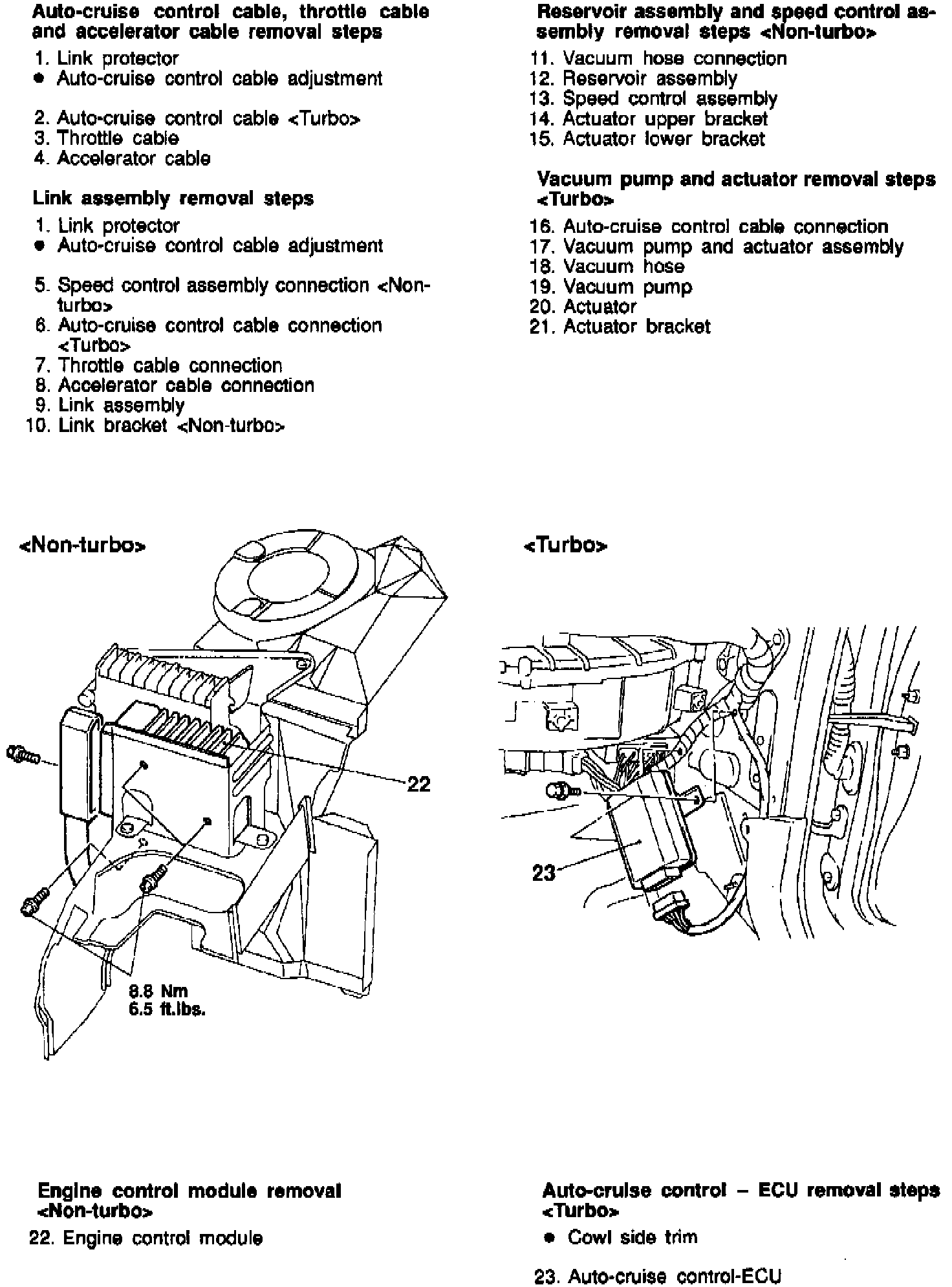

Fig. 82 Speed Control System Replacement (Part 1 Of 3):

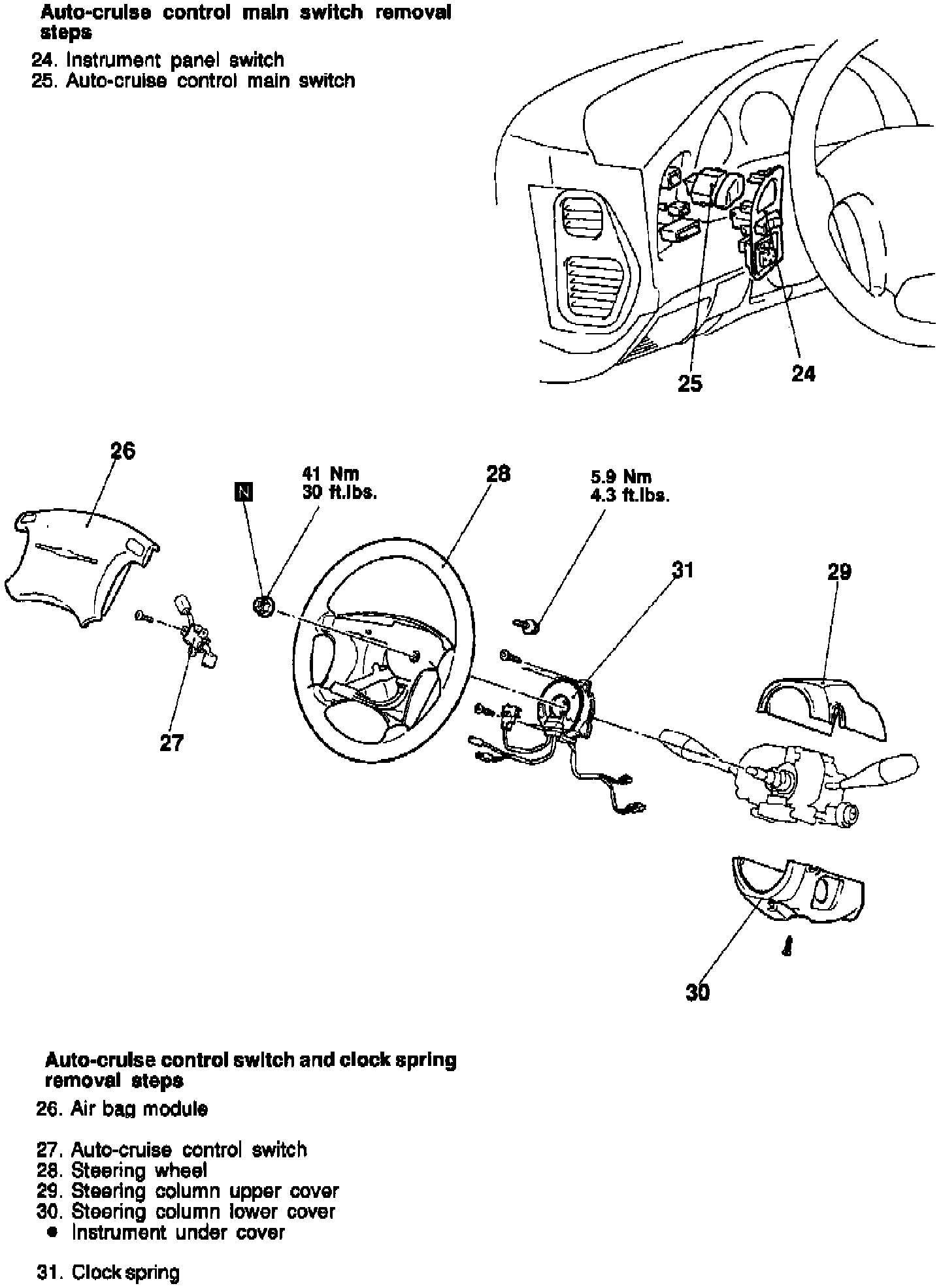

Fig. 82 Speed Control System Replacement (Part 2 Of 3):

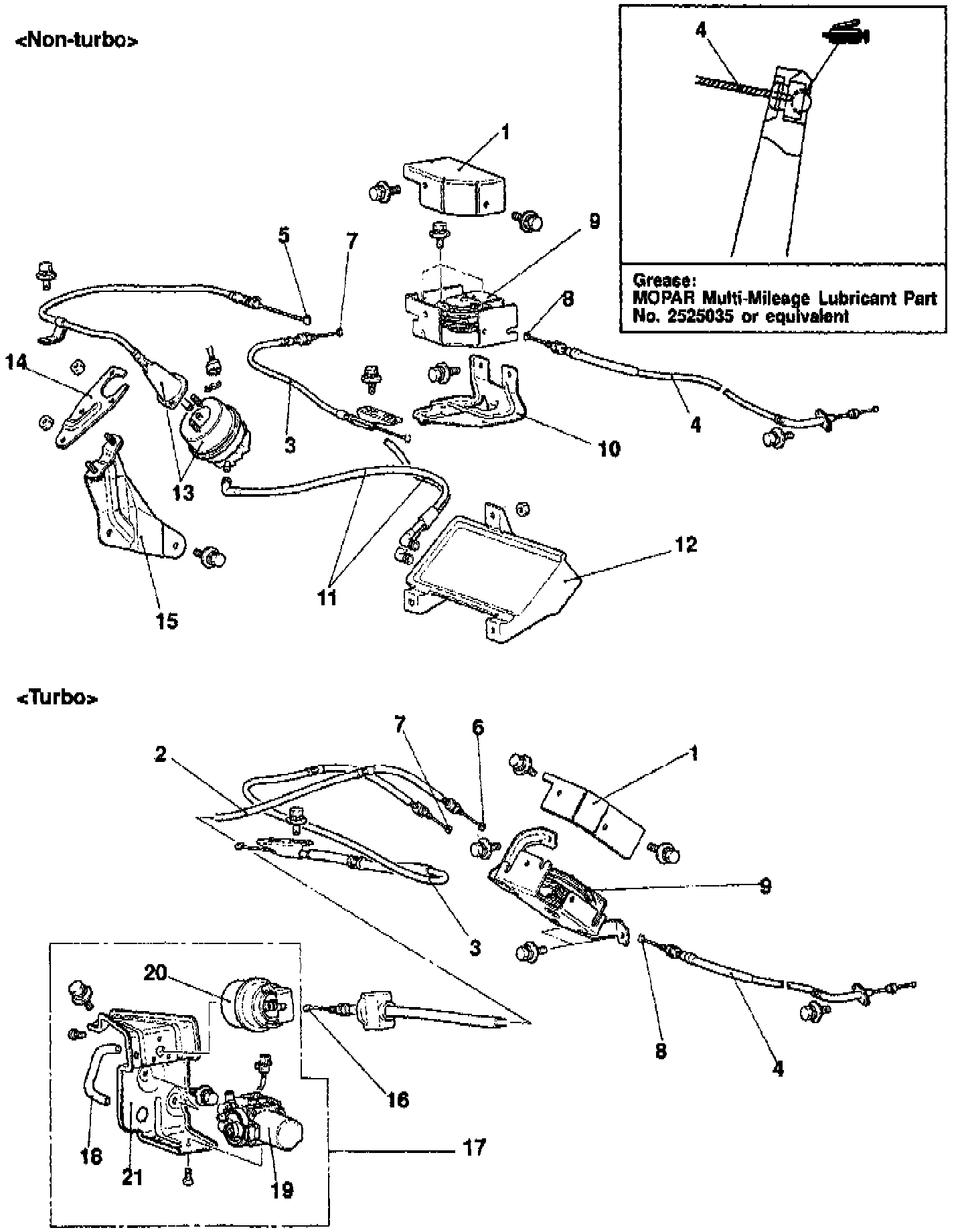

Fig. 82 Speed Control System Replacement (Part 3 Of 3):
