Engine Control Module

Powertrain Connector Views are located on electrical diagrams. Electrical Diagrams Wiring Diagrams. Connector Views and pin outs are located on the INDIVIDUAL ELECTRICAL DIAGRAMS. REFER TO THE ELECTRICAL DIAGRAMS.

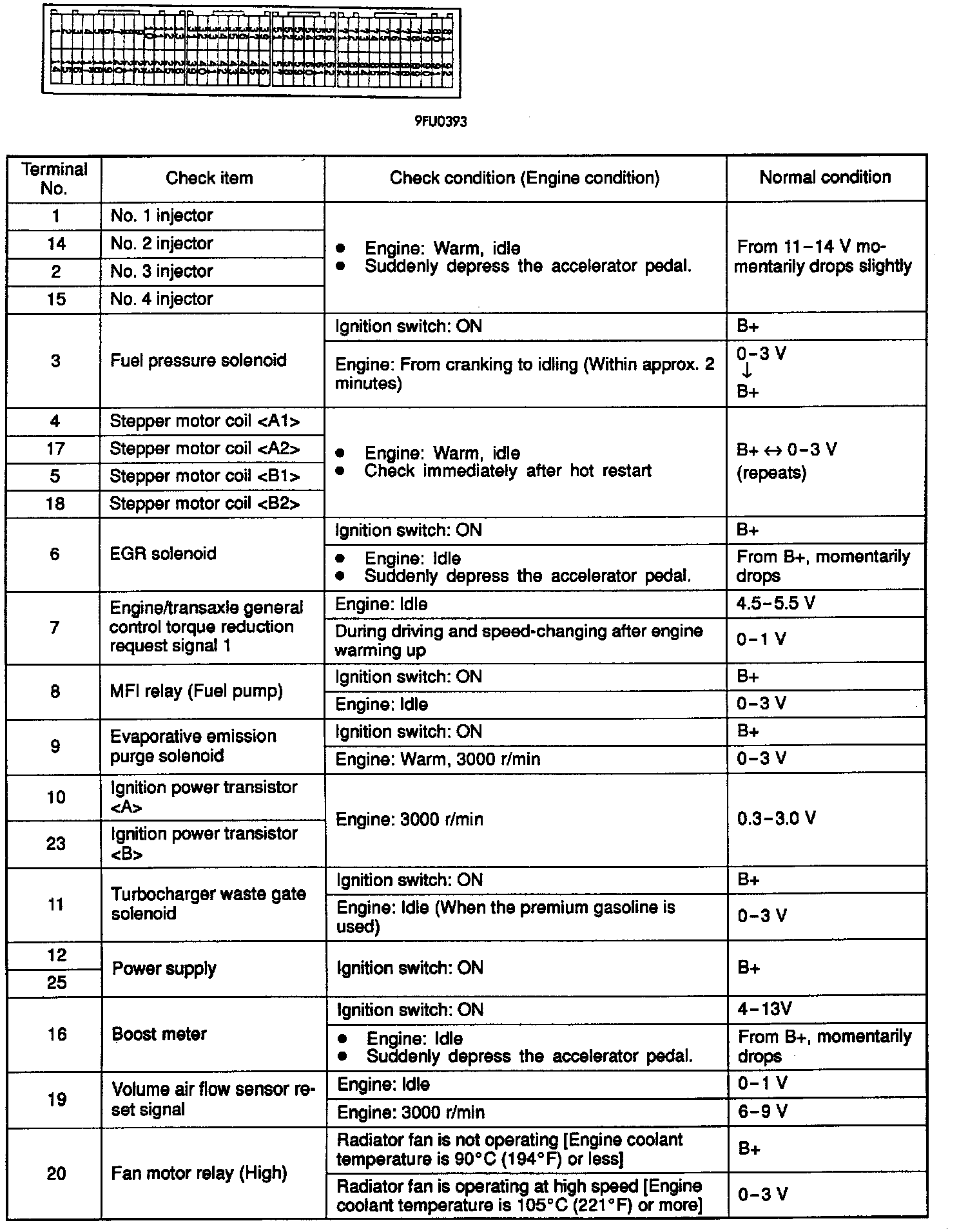

Terminal 1-20

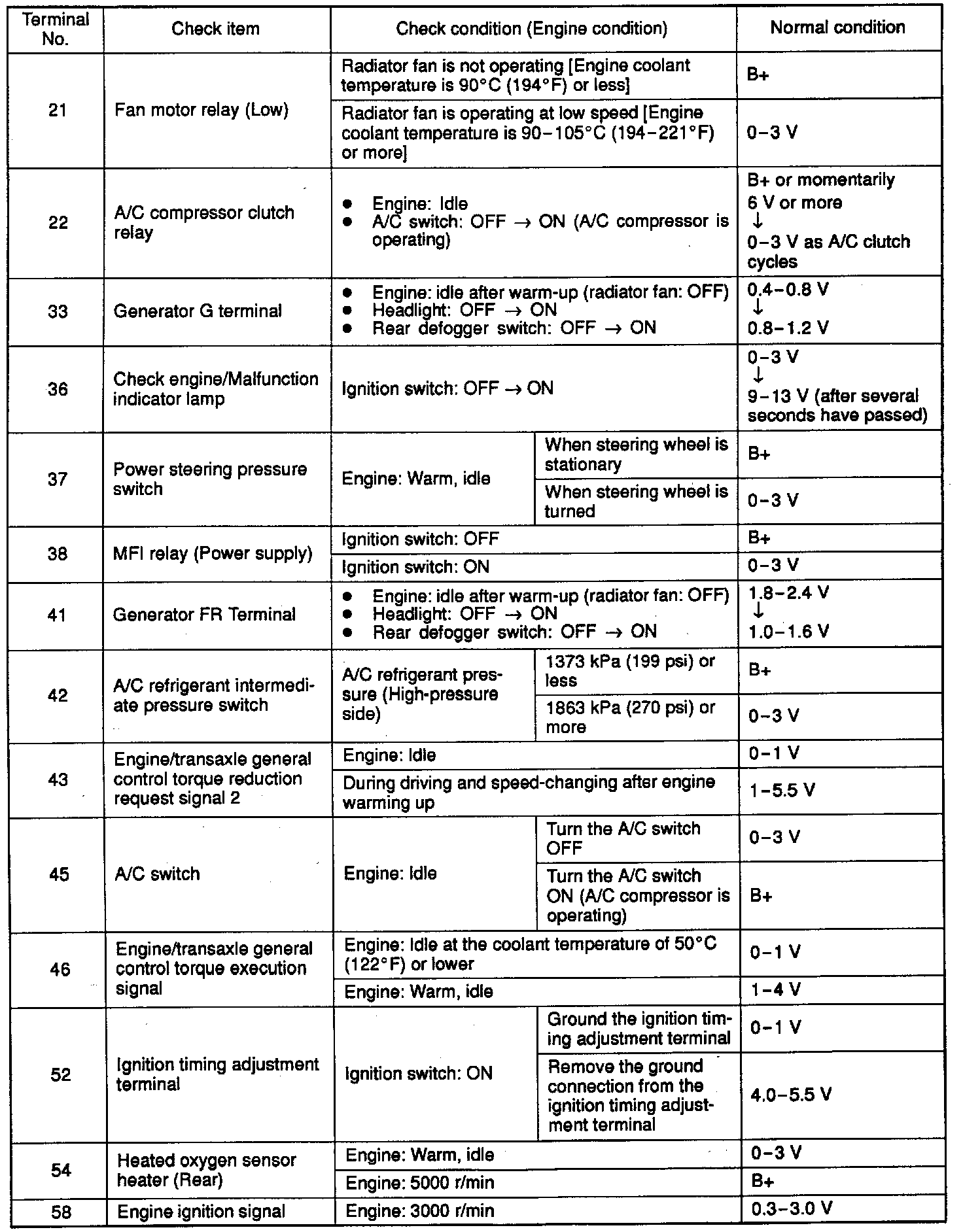

Terminal 21-58

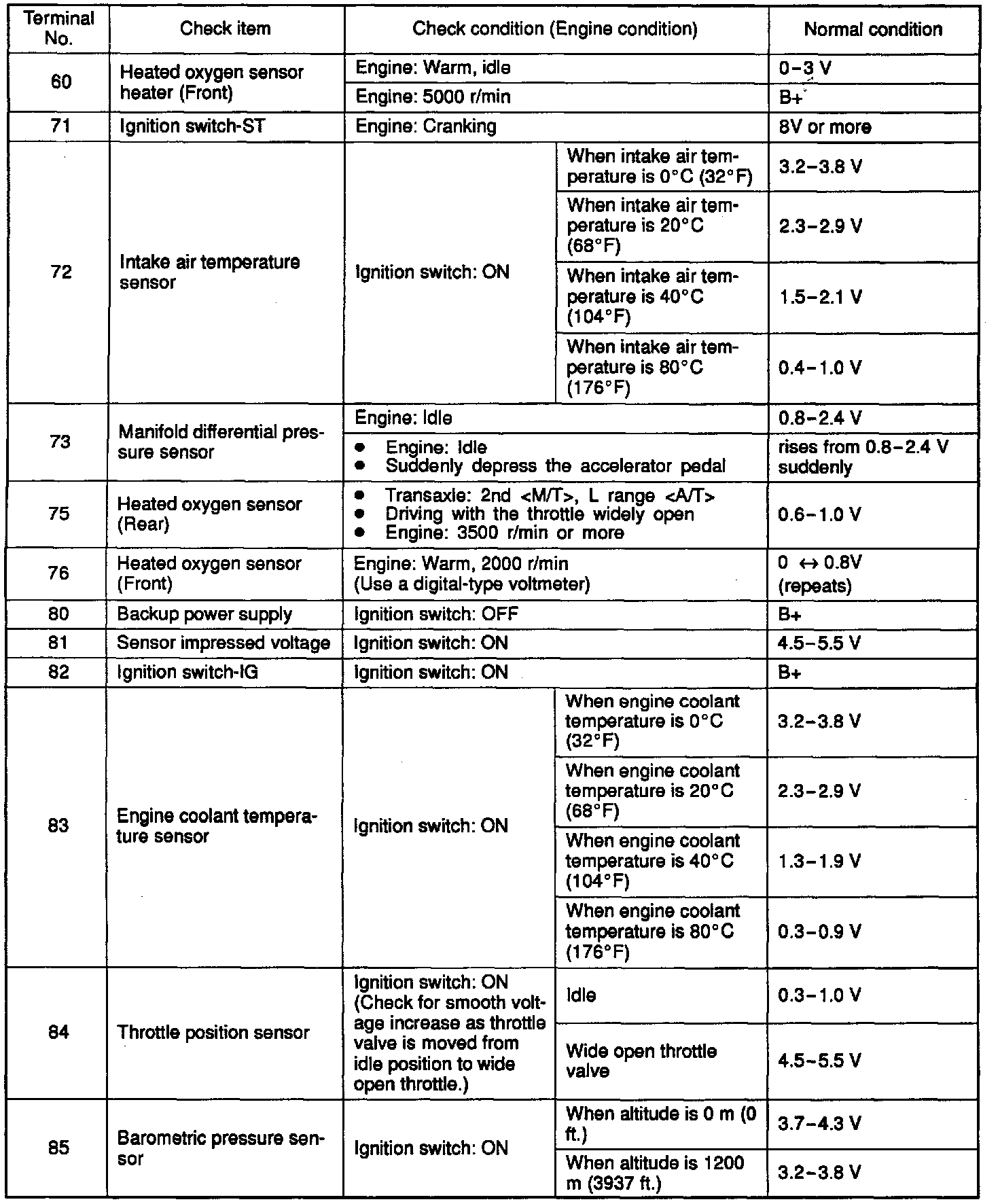

Terminal 60-85

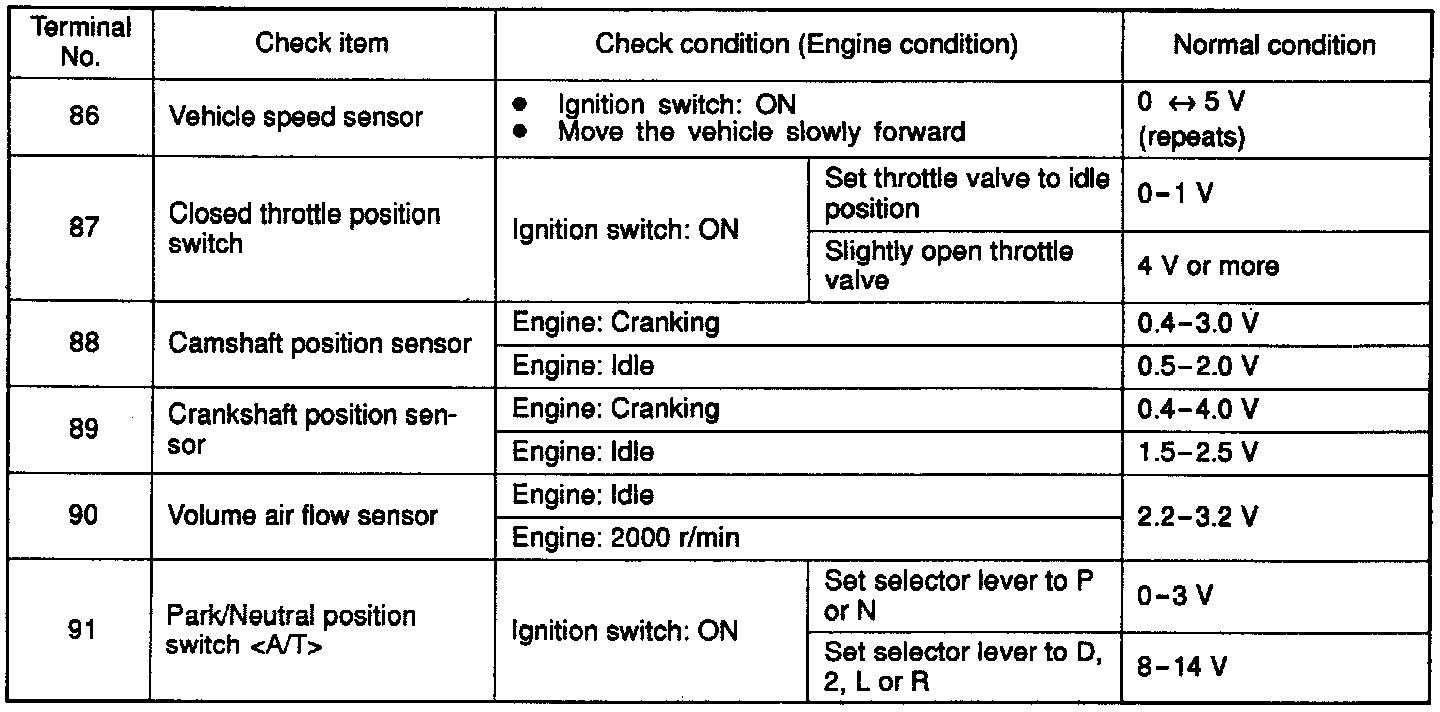

Terminal 86-91
