Camshaft Position Sensor: Service and Repair

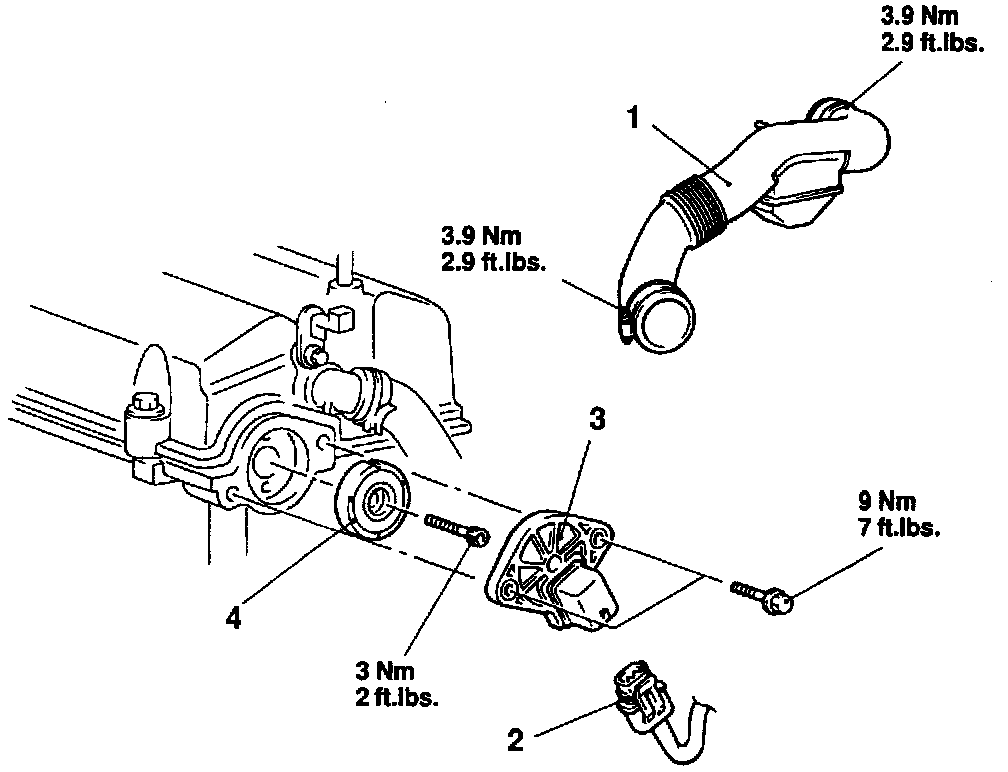

REMOVAL STEPS
1. Air Intake Hose
2. Camshaft Position Sensor connector
3. Camshaft Position Sensor
4. Target Magnet

INSTALLATION SERVICE POINT





Target Magnet Installation
Align the tabs with the holes to install the target magnet to the camshaft.
