Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:





Pre-Removal
- Under cover

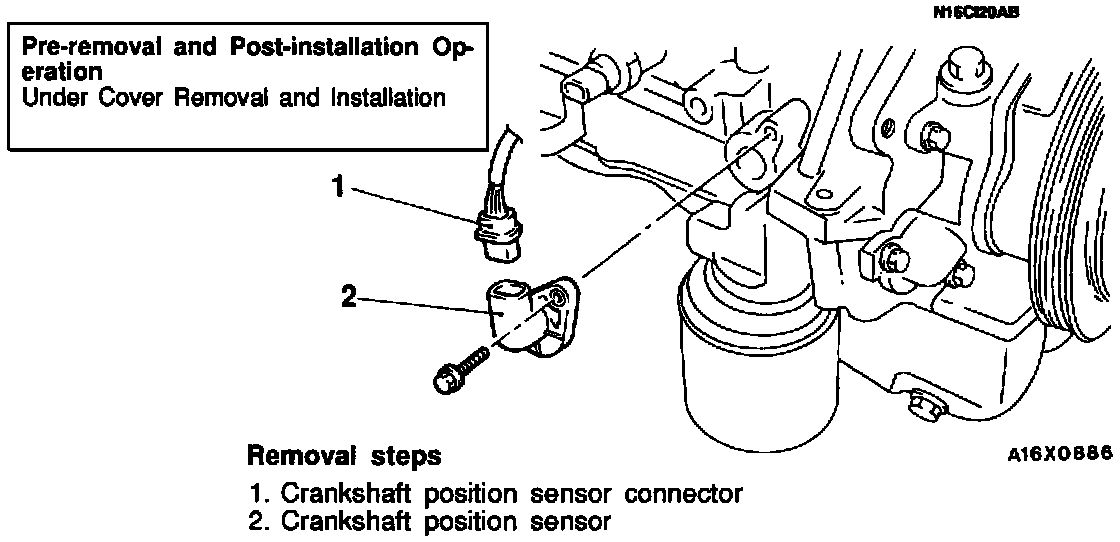

REMOVE
1. Crankshaft position sensor connector
2. Crankshaft position sensor

INSTALL
1. Crankshaft position sensor
2. Crankshaft position sensor connector

Post-Installation
- Under cover
