Knock Sensor: Service and Repair

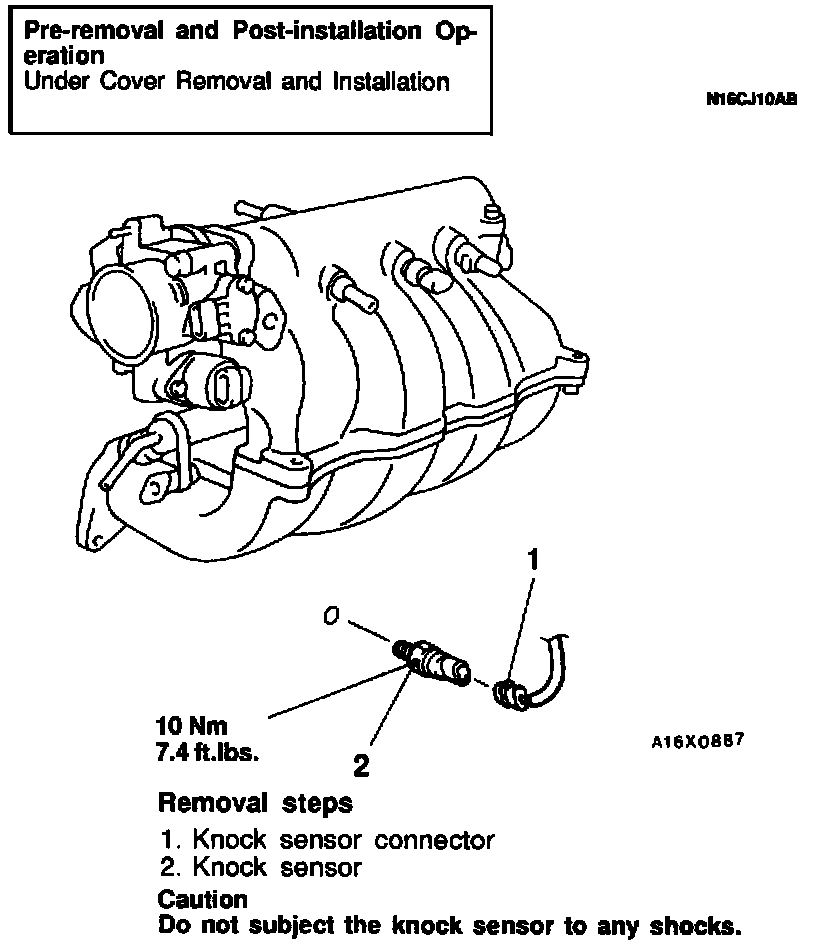

Knock Sensor - Removal And Installation:






CAUTION: Do not subject the knock sensor to any shocks.

Pre-Removal
- Under cover

REMOVE
1. Knock sensor Connector
2. Knock Sensor

INSTALL
1. Knock sensor
2. Knock sensor Connector

Post-Installation
- Under cover
