Computers and Control Systems: Locations

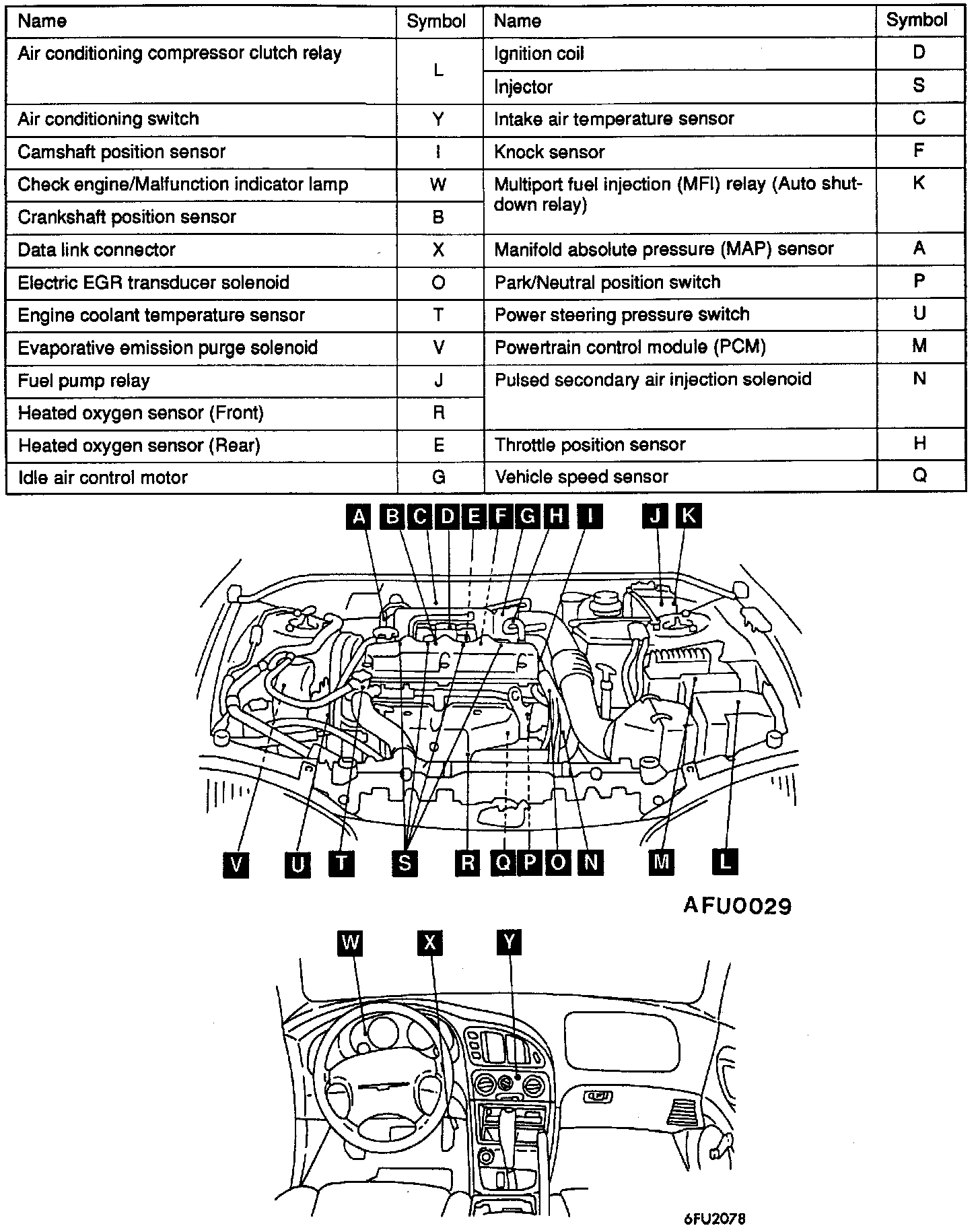

Index

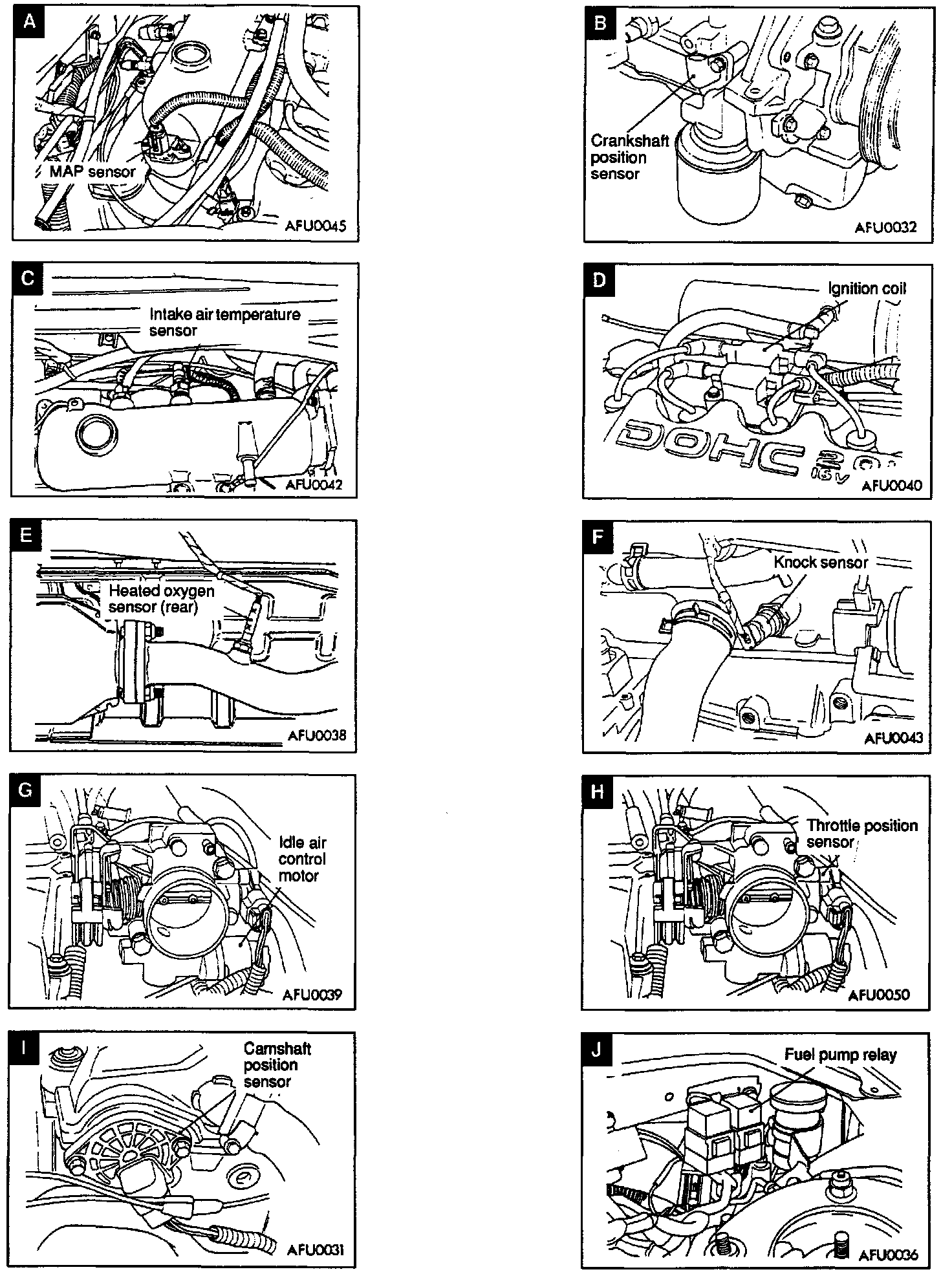

Close-up views (A - J)

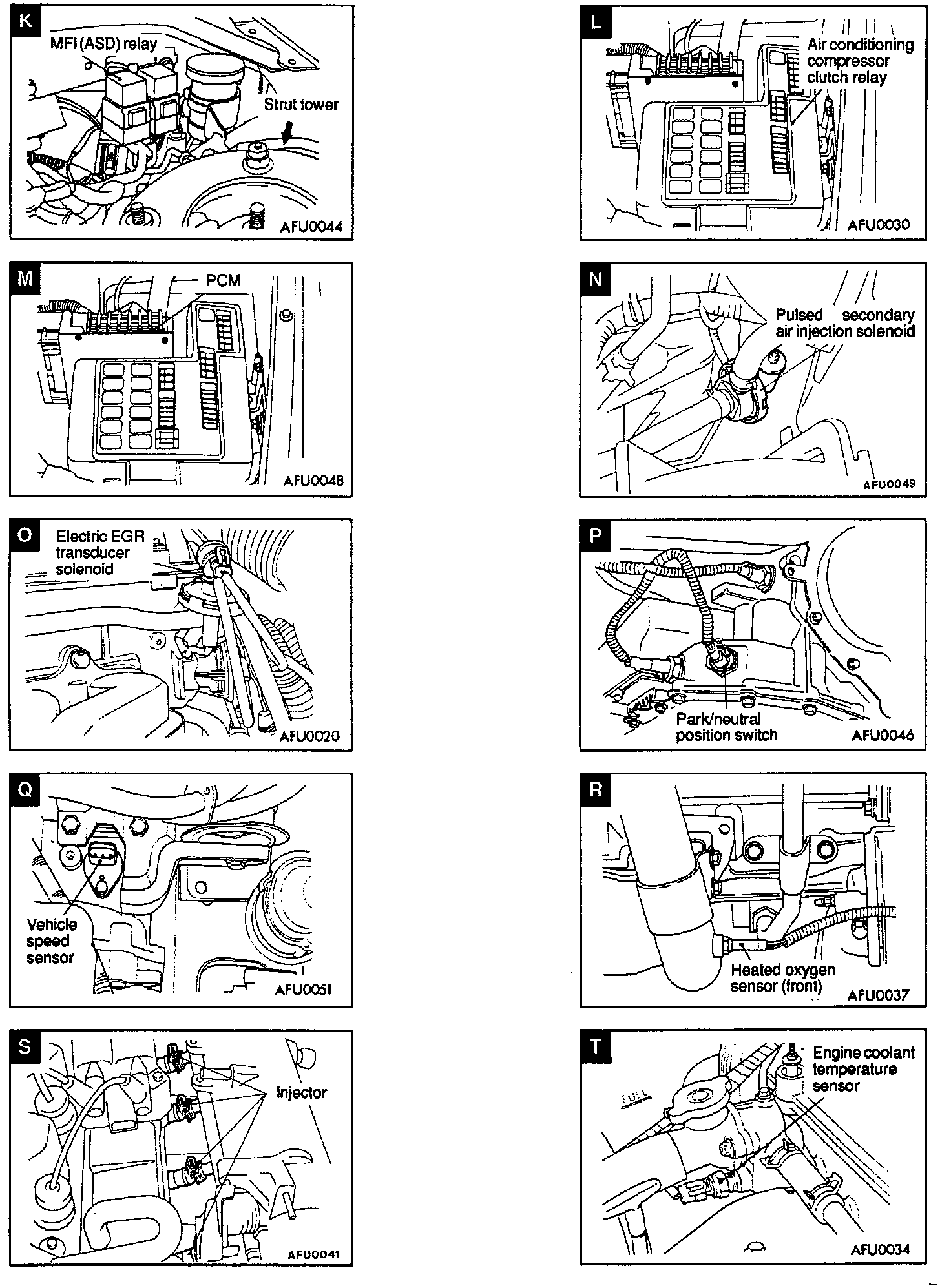

Close-up views (K - T)

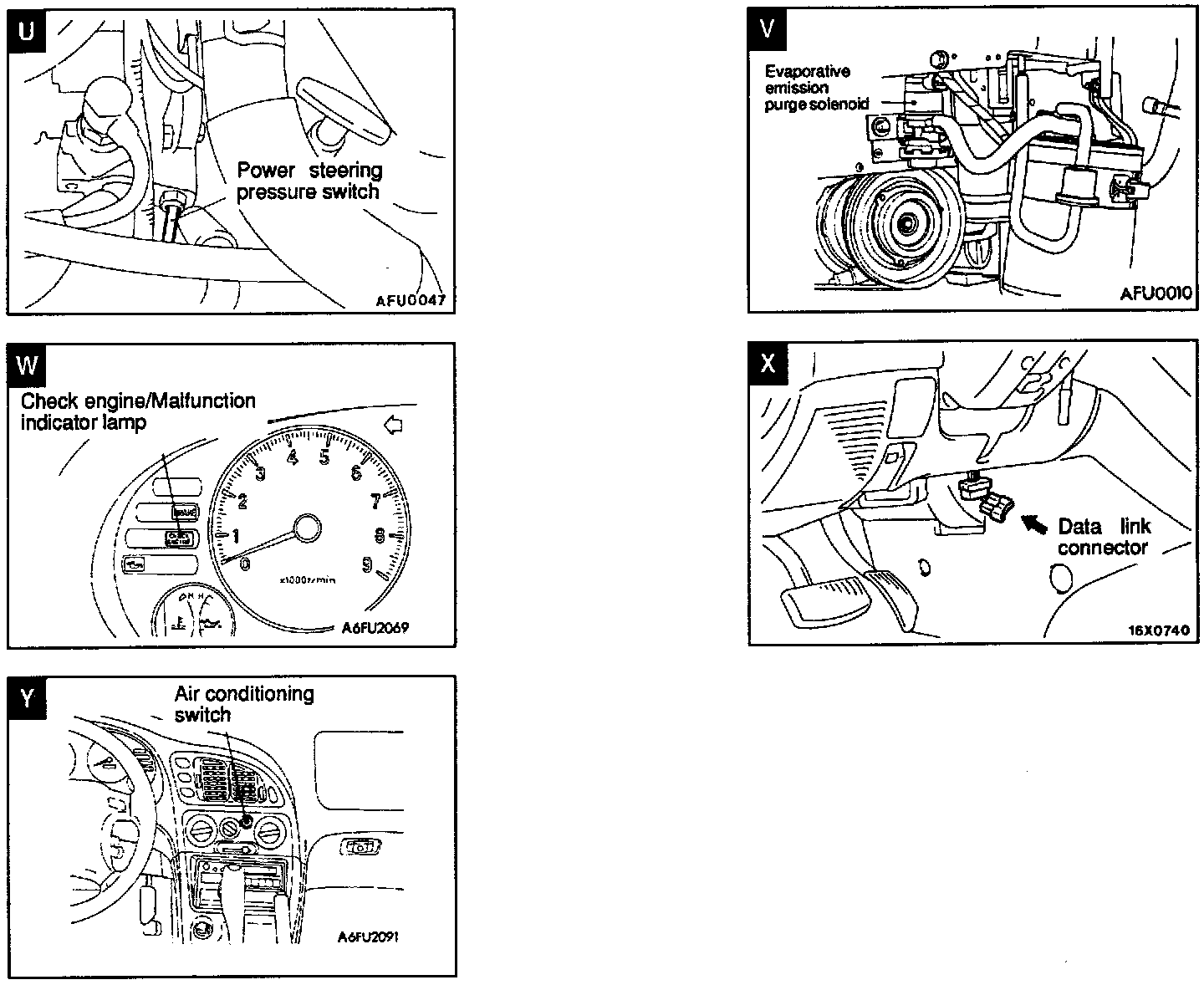

Close-up views (U - Y)
