Ignition Cable: Service and Repair

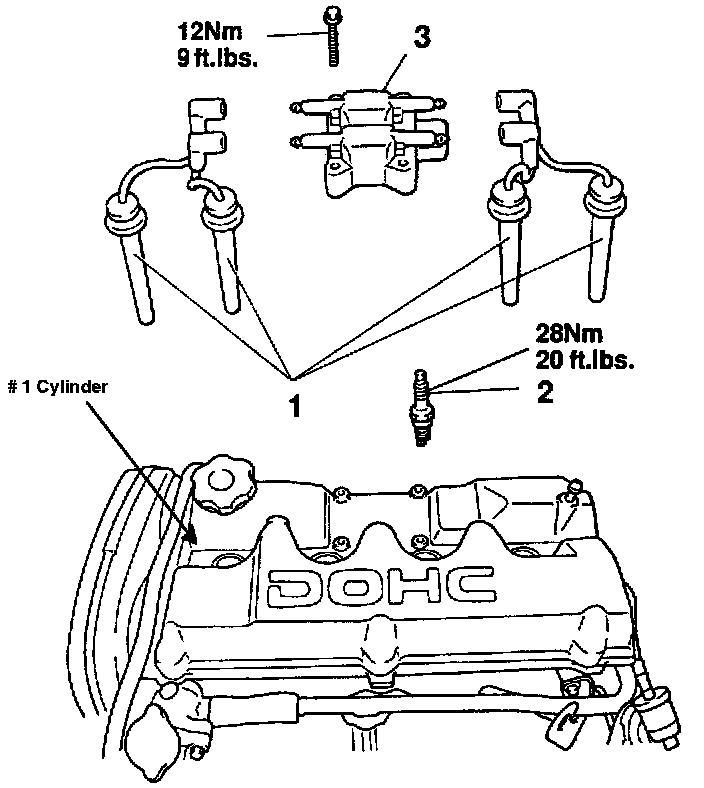

REMOVAL STEPS
1. Spark plug cable
2. Spark plug
3. Ignition coil.
