Ignition System: Service and Repair

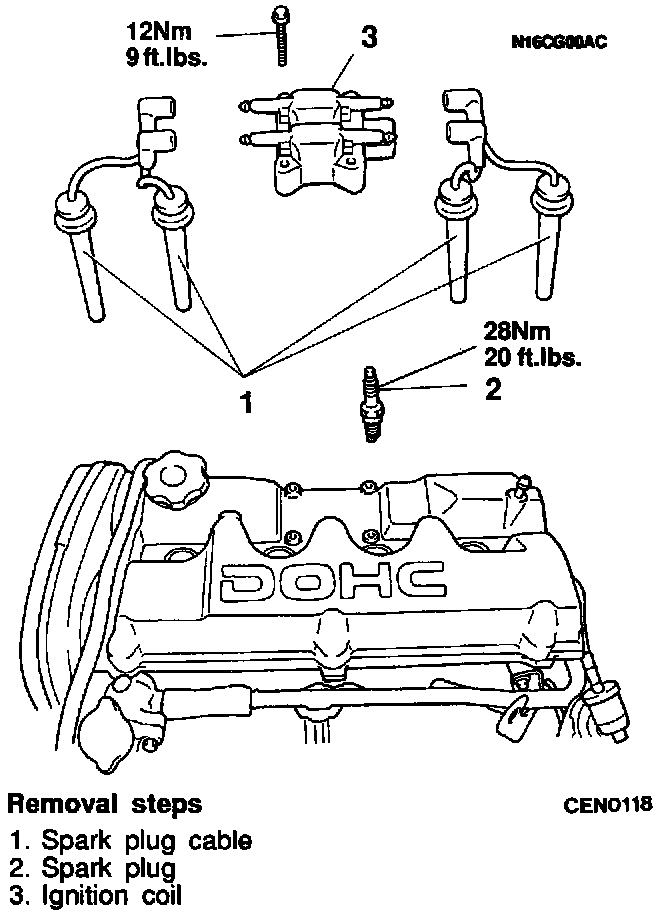

Ignition System - Removal And Installation:





REMOVE
1. Spark Plug cable
2. Spark Plug
3. Ignition coil

INSTALL
1. Ignition coil
2. spark Plug
3. spark Plug cable
