Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Description	Illustration
Autostick Switch	See Fig 1
Data Link Connector (1995 Models)	See Fig 2
Data Link Connector (1996 Models)	See Fig 3
Inline 12-Pin Connector	See Fig 4
Inline 8-Pin Connector	See Fig 6
Input Speed Sensor	See Fig 8
Manual Valve Lever Position Sensor/Transmission Range Sensor	See Fig 9
Output Speed Sensor	See Fig 10
Solenoid Pack	See Fig 11
Transmission Control Module	See Fig 12
Transmission Control Relay	See Fig 13

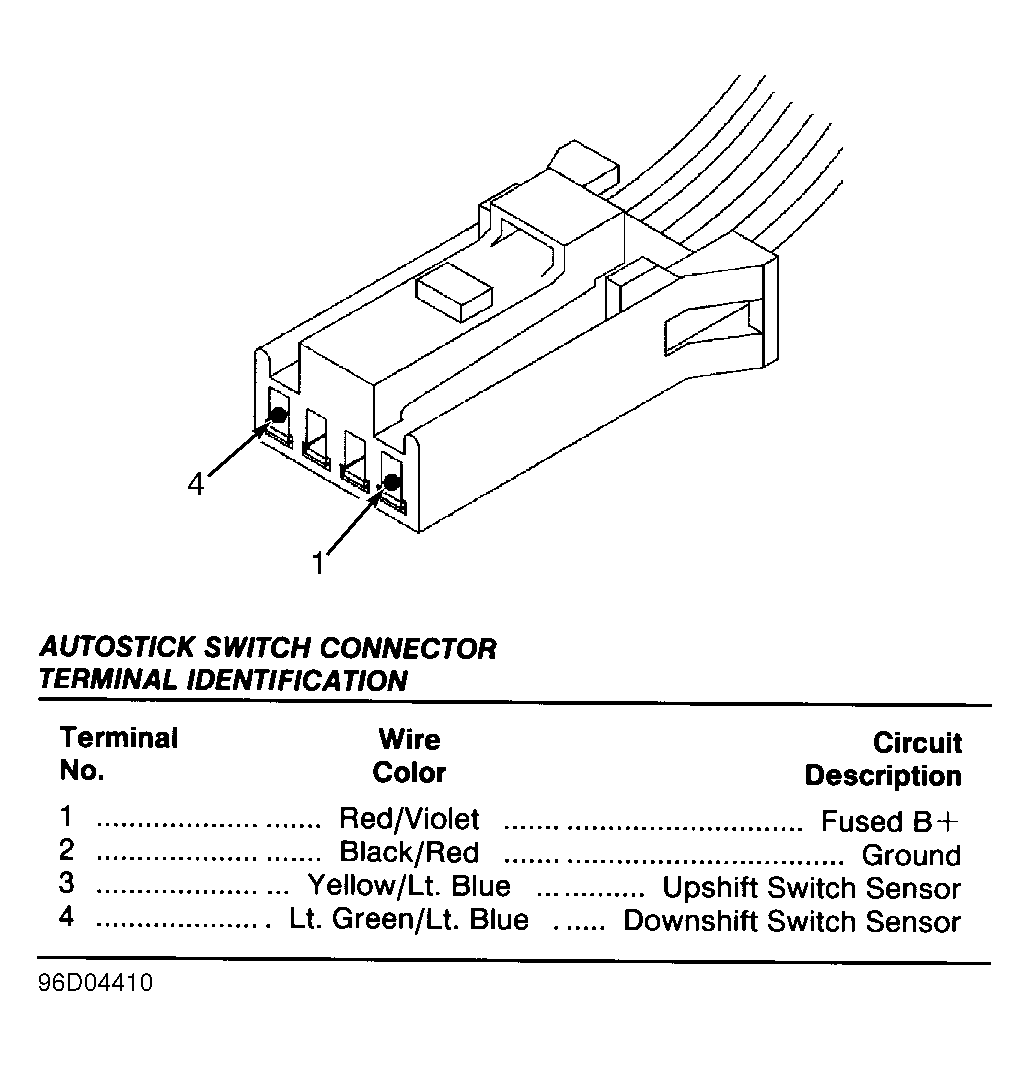

Fig 1: Identifying Autostick Switch Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Data Link Connector (1995 Models) Terminals

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Data Link Connector (1996 Models) Connector Terminals

Courtesy of CHRYSLER CORP.

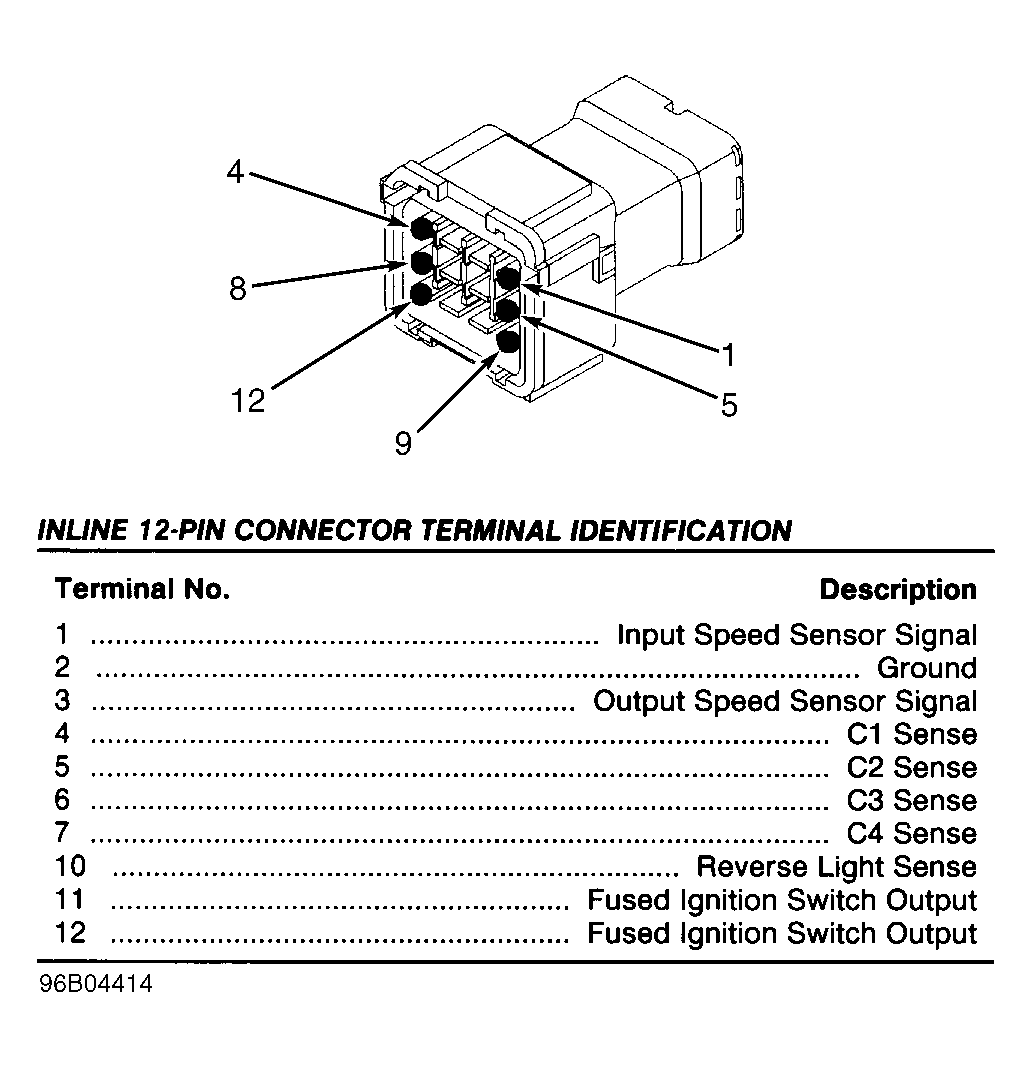

Fig 4: Identifying Inline 12-Pin Connector Terminals - Harness Side

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Inline 12-Pin Connector Terminals - Transmission Side

Courtesy of CHRYSLER CORP.

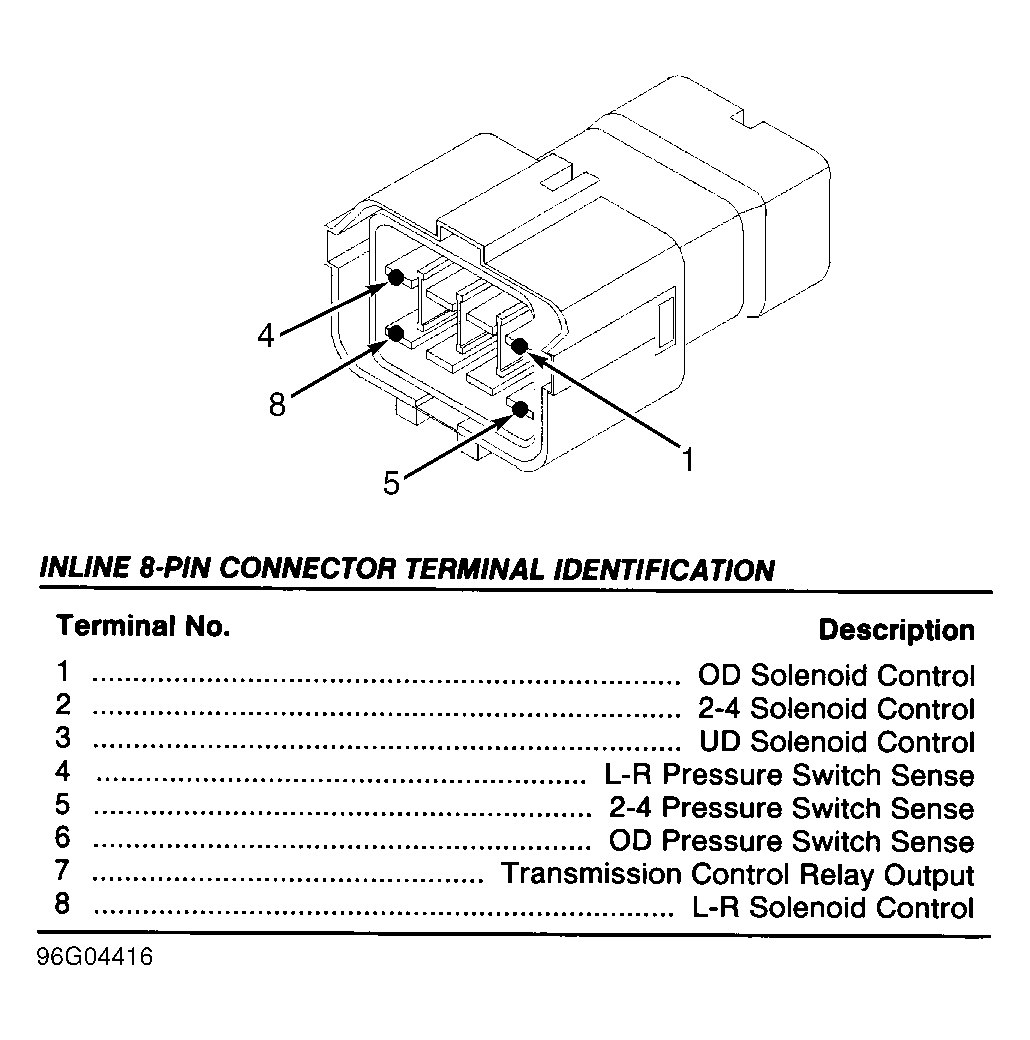

Fig 6: Identifying Inline 8-Pin Connector Terminals - Harness Side

Courtesy of CHRYSLER CORP.

Fig 7: Identifying Inline 8-Pin Connector Terminals - Transmission Side

Courtesy of CHRYSLER CORP.

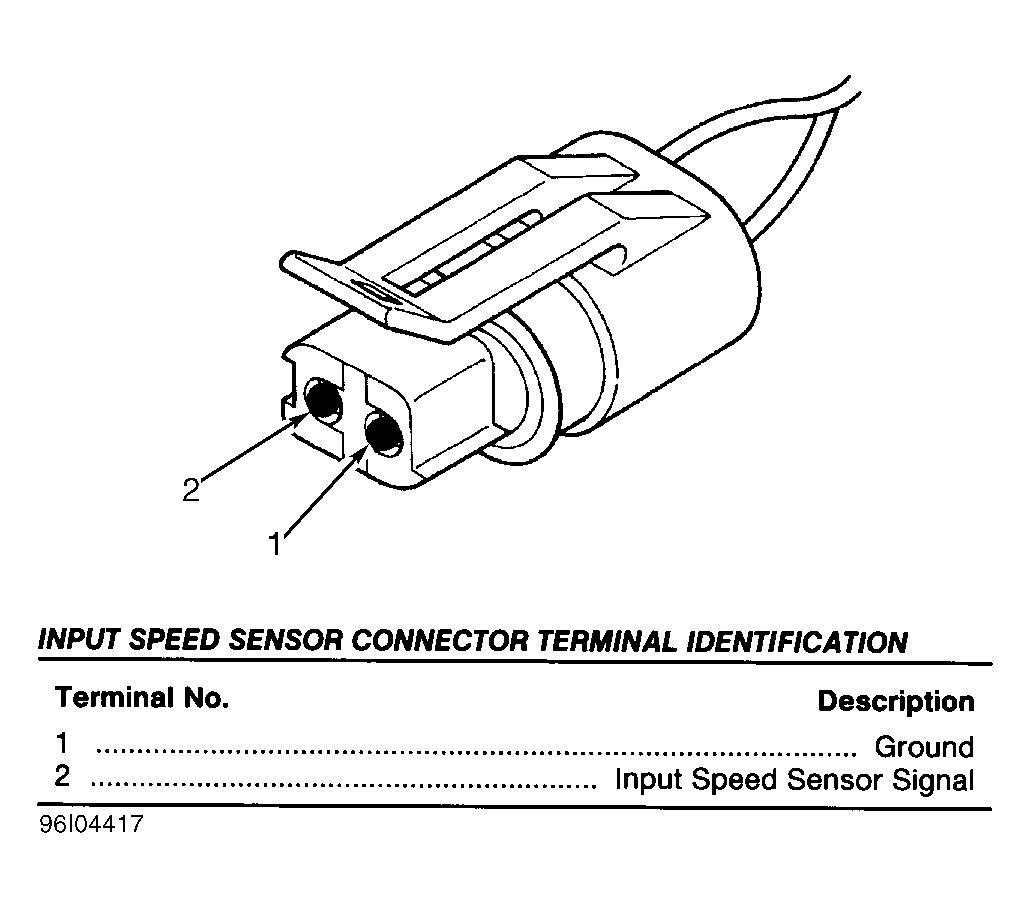

Fig 8: Identifying Input Speed Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

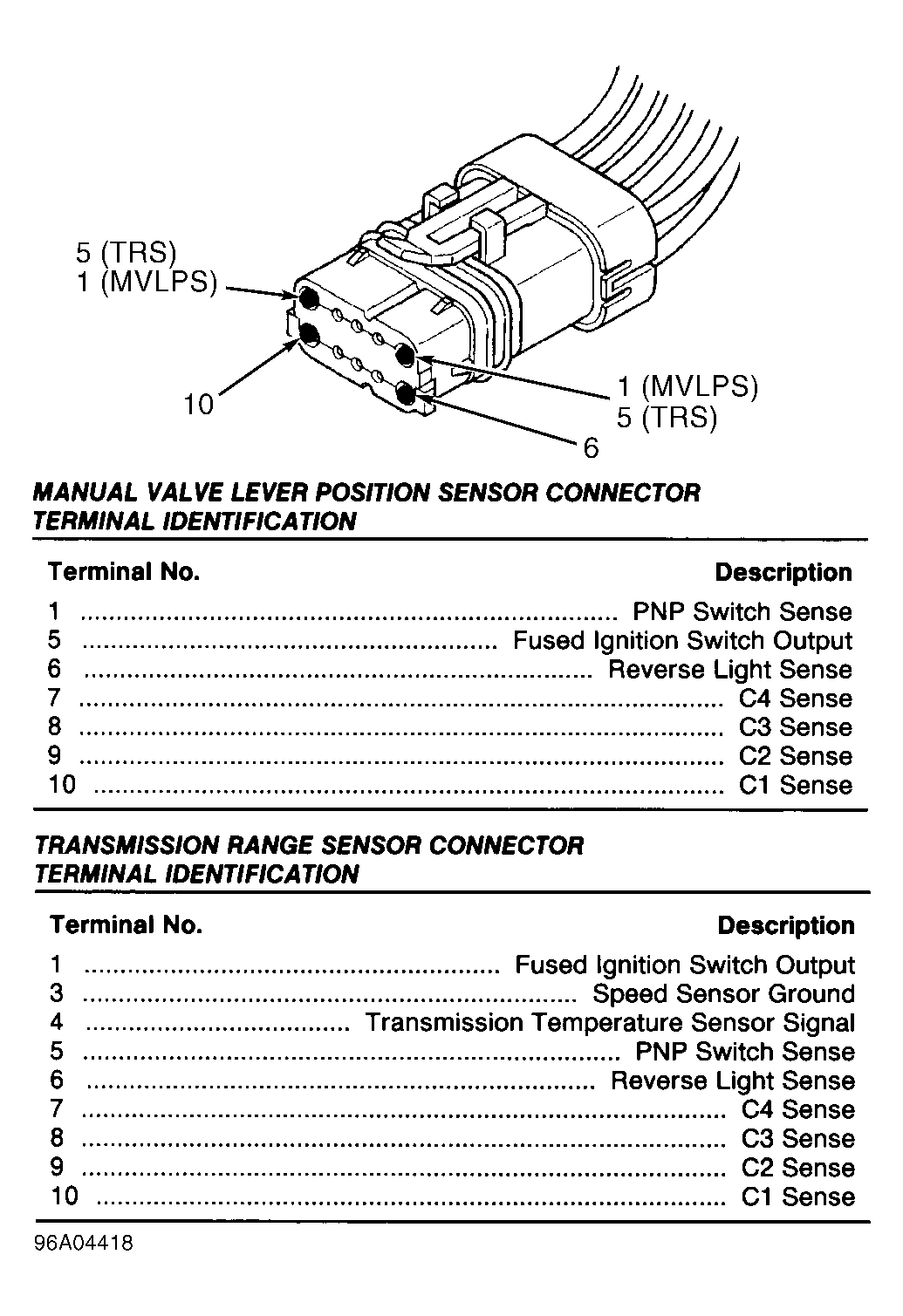

Fig 9: Identifying MVLPS (1995) Or TRS (1996) Connector Terminals

Courtesy of CHRYSLER CORP.

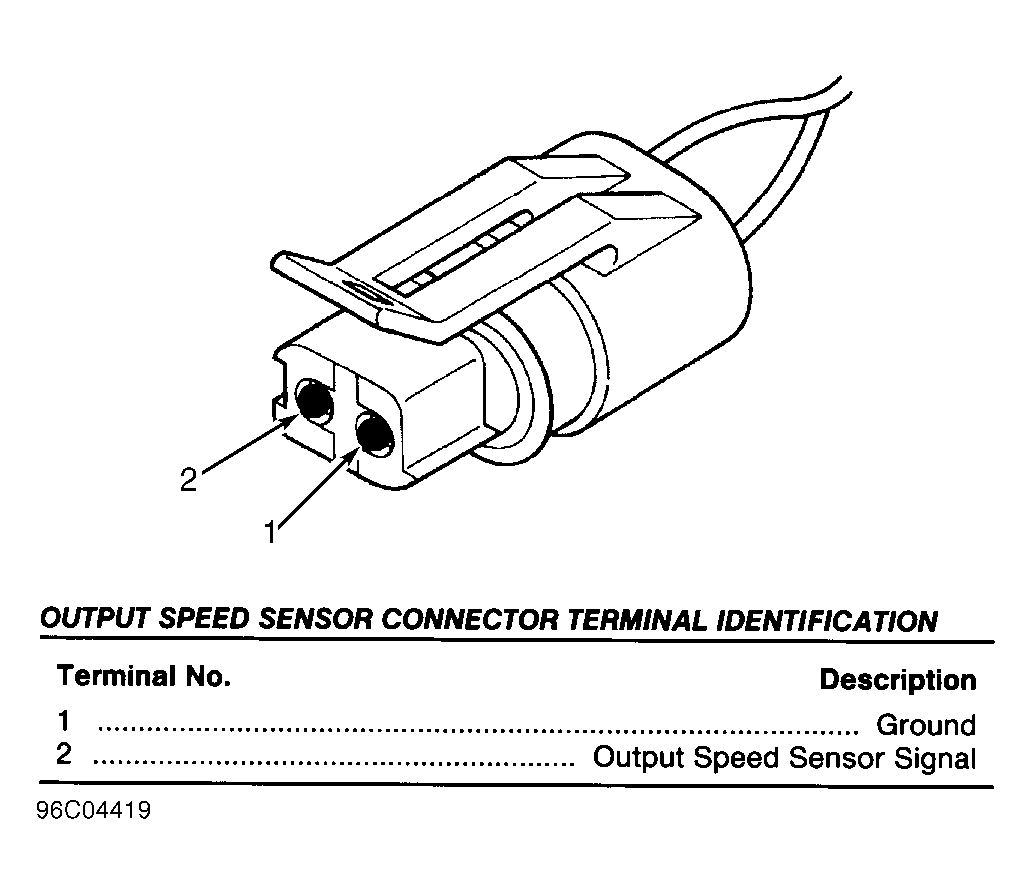

Fig 10: Identifying Output Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

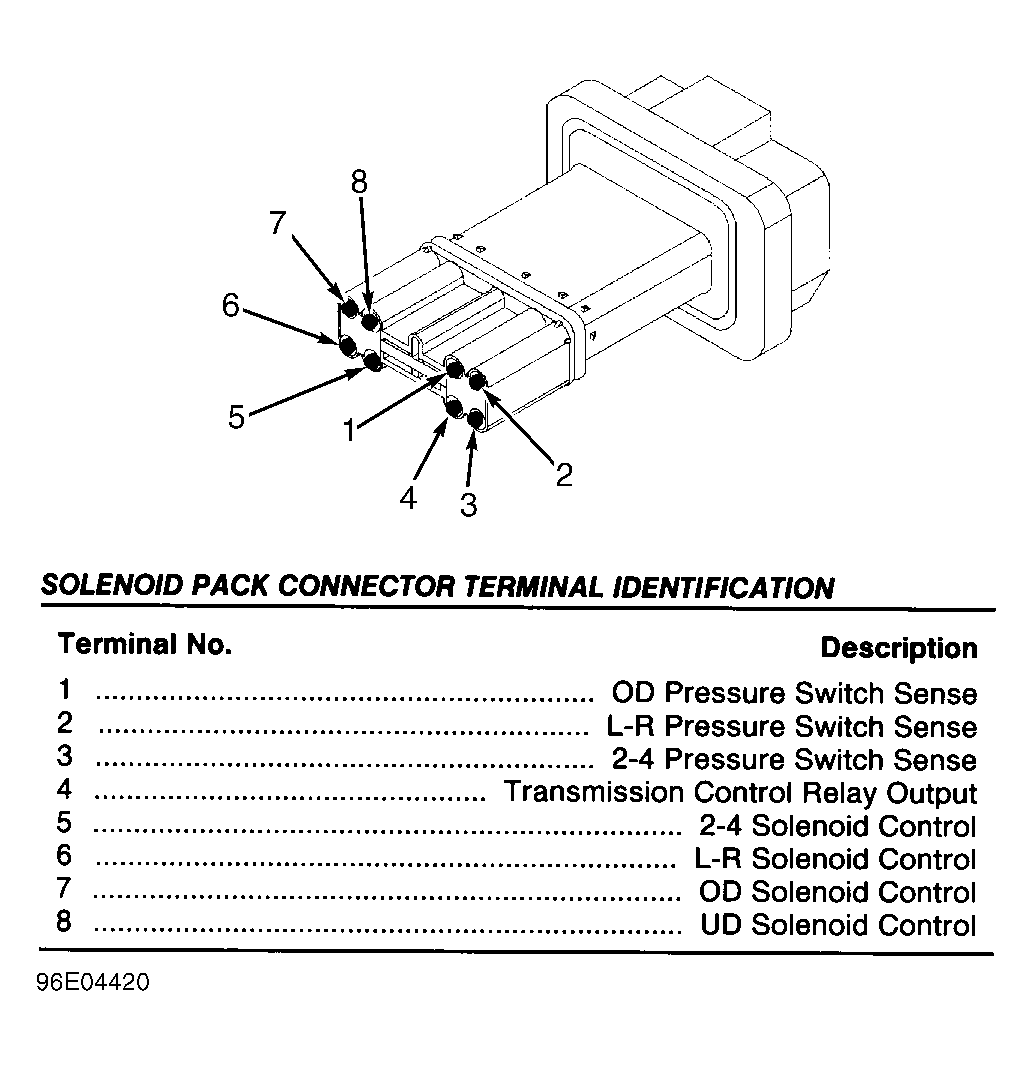

Fig 11: Identifying Solenoid Pack Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 12: Identifying Transmission Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 13: Identifying Transmission Control Relay Connector Terminals

Courtesy of CHRYSLER CORP.

AUTOSTICK CONNECTOR TERMINAL IDENTIFICATION

INLINE 12-PIN CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Description
1	Input Speed Sensor Signal
2	Ground
3	Output Speed Sensor Signal
4	C1 Sense
5	C2 Sense
6	C3 Sense
7	C4 Sense
10	Reverse Light Sense
11	Fused Ignition Switch Output
12	Fused Ignition Switch Output

TRANSMISSION RANGE SENSOR CONNECTOR TERMINAL I.D.

Terminal No.	Description
1	Fused Ignition Switch Output
3	Speed Sensor Ground
4	Transmission Temperature Sensor Signal
5	PNP Switch Sense
6	Reverse Light Sense
7	C4 Sense
8	C3 Sense
9	C2 Sense
10	C1 Sense

MANUAL VALVE LEVER POSITION SENSOR CONNECTOR TERMINAL ID

Terminal No.	Description
1	PNP Switch Sense
5	Fused Ignition Switch Output
6	Reverse Light Sense
7	C4 Sense
8	C3 Sense
9	C2 Sense
10	C1 Sense

INLINE 8-PIN CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Description
1	OD Solenoid Control
2	2-4 Solenoid Control
3	UD Solenoid Control
4	L-R Pressure Switch Sense
5	2-4 Pressure Switch Sense
6	OD Pressure Switch Sense
7	Transmission Control Relay Output
8	L-R Solenoid Control

INPUT SPEED SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Description
1	Ground
2	Input Speed Sensor Signal

OUTPUT SPEED SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Description
1	Ground
2	Output Speed Sensor Signal

SOLENOID PACK CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Description
1	OD Pressure Switch Sense
2	L-R Pressure Switch Sense
3	2-4 Pressure Switch Sense
4	Transmission Control Relay Output
5	2-4 Solenoid Control
6	L-R Solenoid Control
7	OD Solenoid Control
8	UD Solenoid Control

TRANSMISSION CONTROL RELAY TERMINAL IDENTIFICATION

Terminal No.	Description
"A"	12-Volt Supply
"B"	Fused B+
"C"	Ground
"D"	Transmission Control Relay Output
