Door Lock Power Relay

Check continuity of relay using following charts. See Fig 1 . Replace relay as needed. For relay location, see Fig 2 .

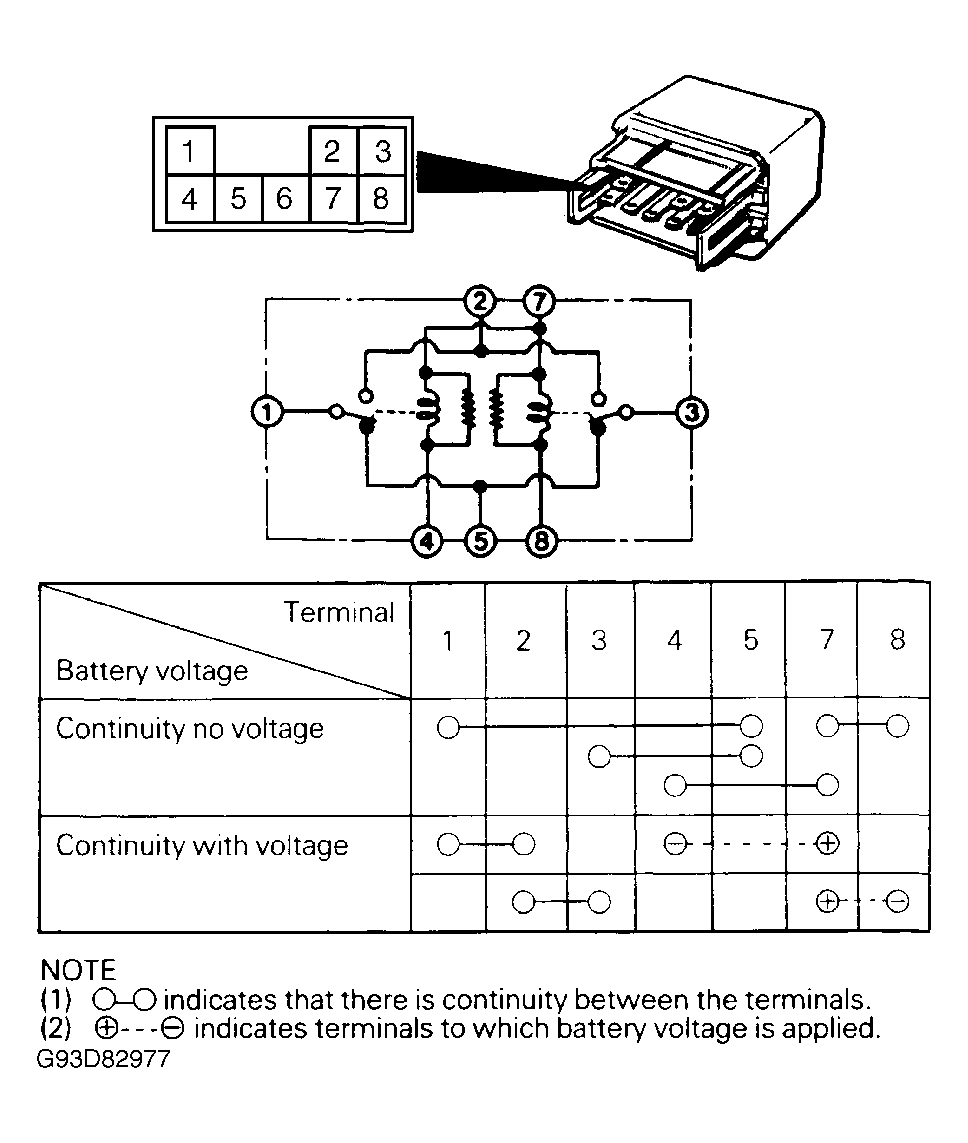

Fig 1: Testing Door Lock Power Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

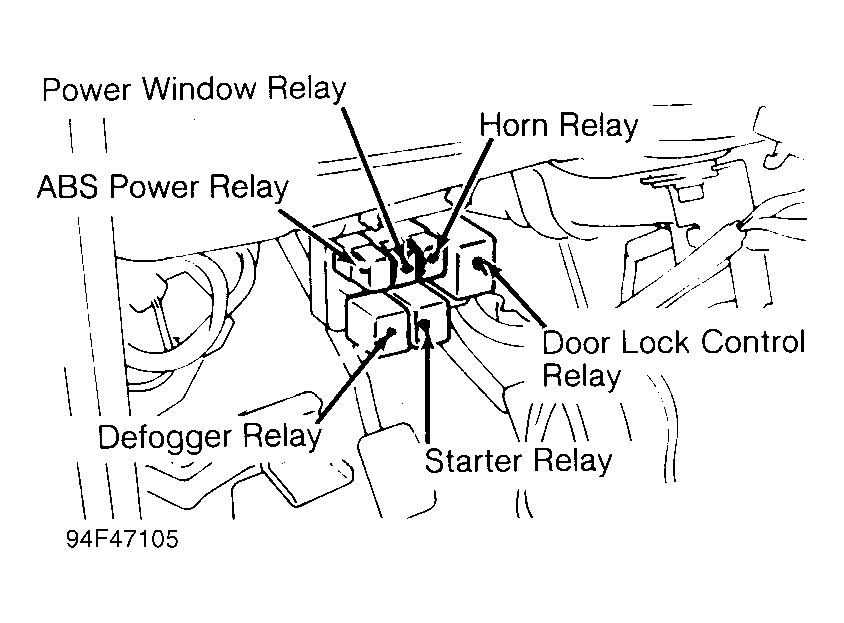

Fig 2: Locating Door Lock Relays

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
