Junction Block

Junction block is located under driver's side of instrument panel. See Figure and Fig 1 .

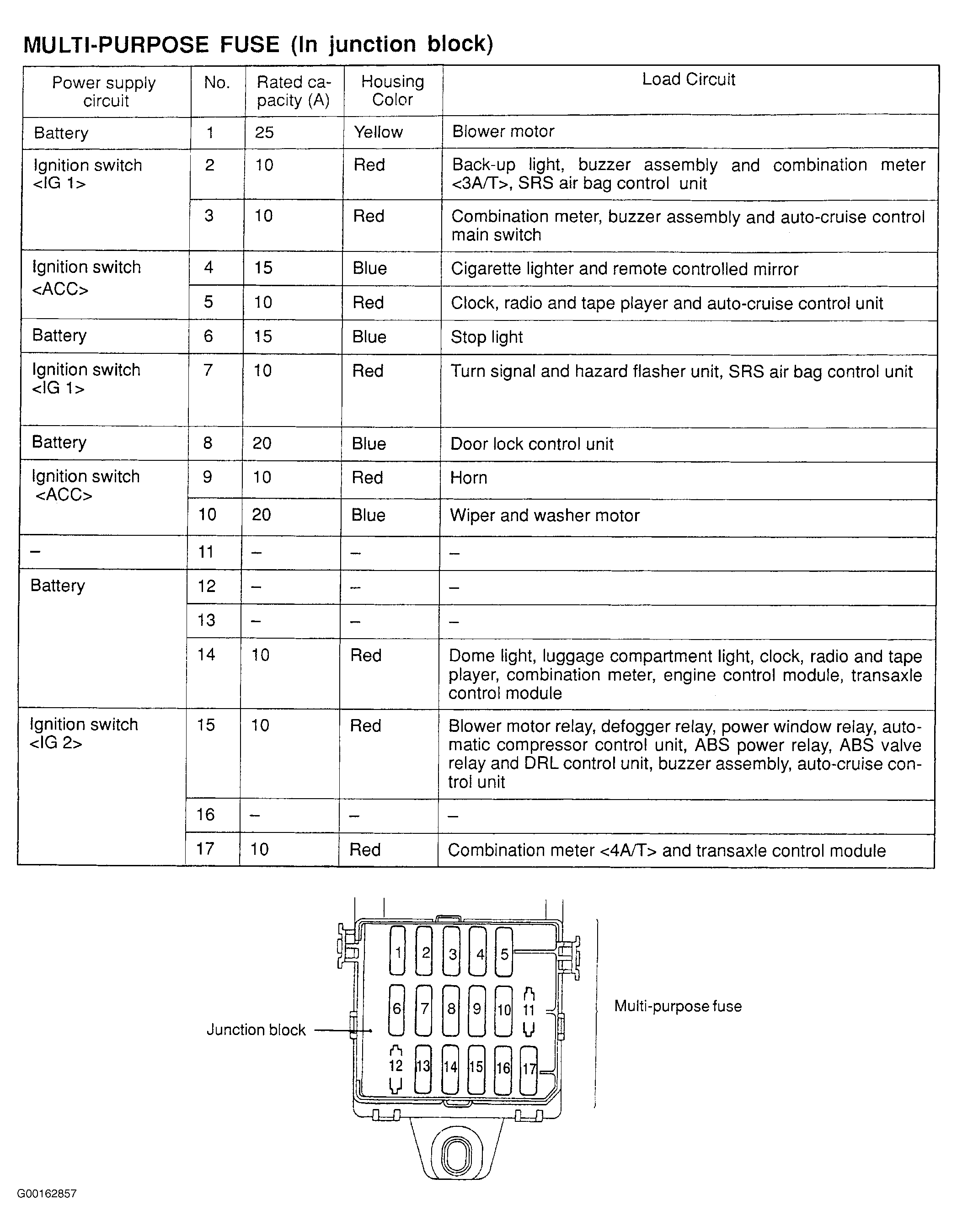

Fig 1: Identifying Junction Block Fuses
G00162857Courtesy of CHRYSLER CORP.
