Blower Resistor

Disconnect connector from resistor. See Fig 1. Using ohmmeter, measure resistance between indicated resistor terminals. See BLOWER MOTOR RESISTOR RESISTANCE table. See Fig 2. If resistance is not as specified, replace blower resistor.

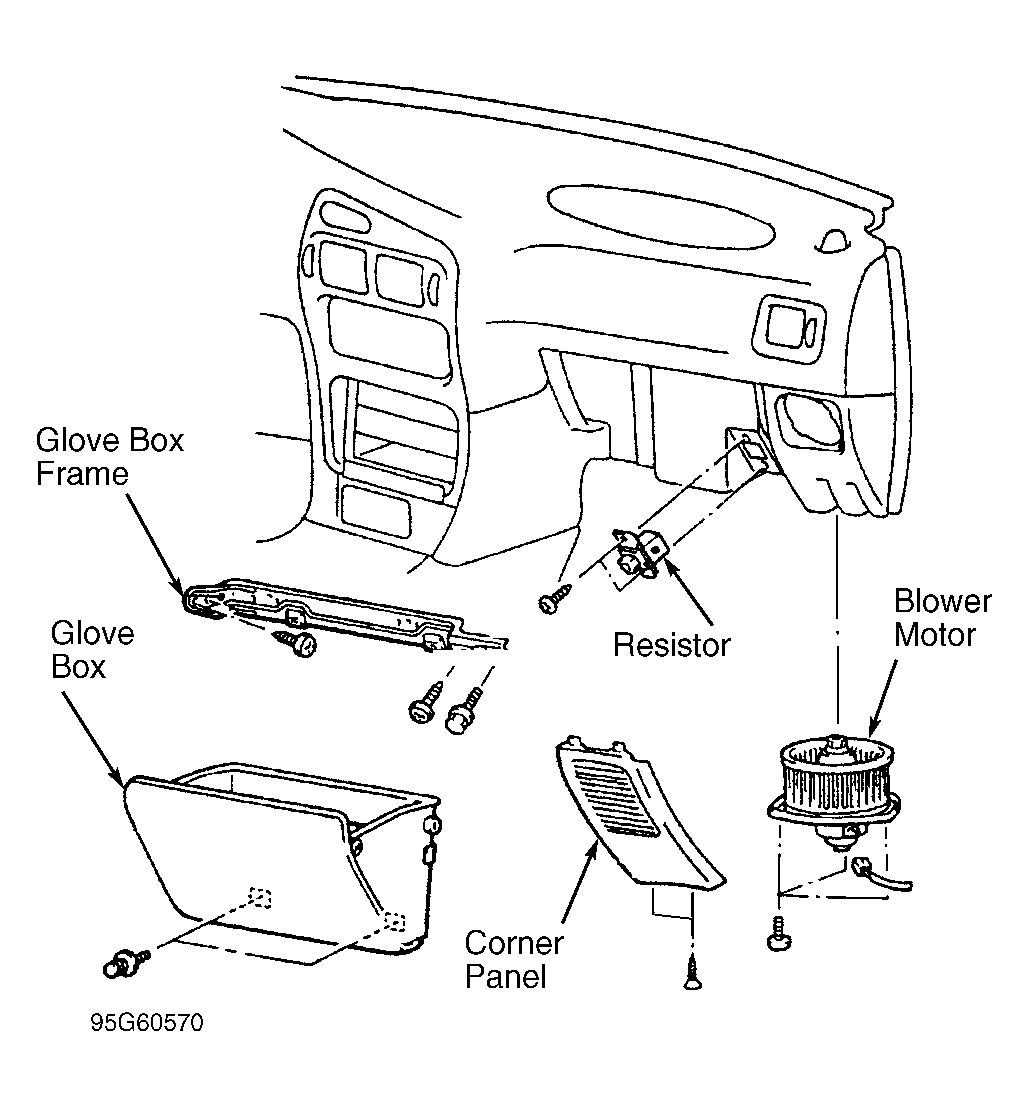

Fig 1: Exploded View Of Blower Assembly

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Blower Motor Resistor Terminals

Courtesy of CHRYSLER CORP.
