Ignition System: Service and Repair

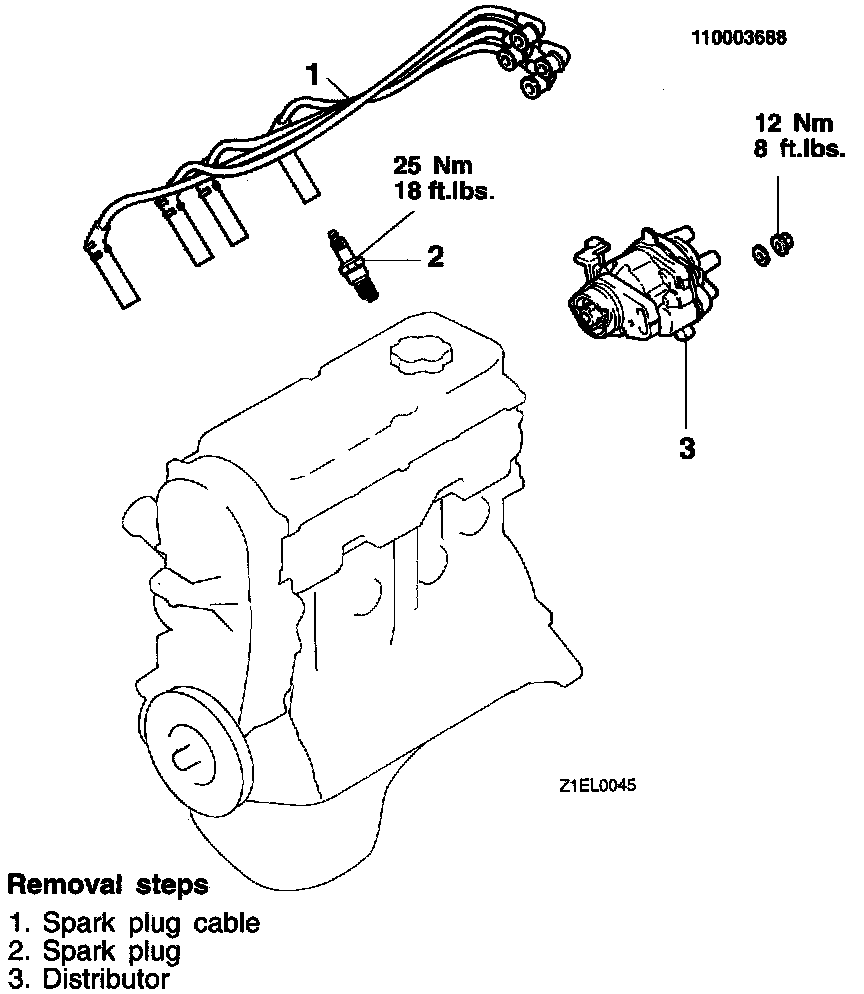

Ignition System - Removal And Installation:





REMOVE
1. Spark plug cable
2. Spark plug
3. Distributor

INSTALL
1. Distributor
2. Spark plug
3. Spark plug cable
