Transmission Control Systems: Locations
Component Locations:

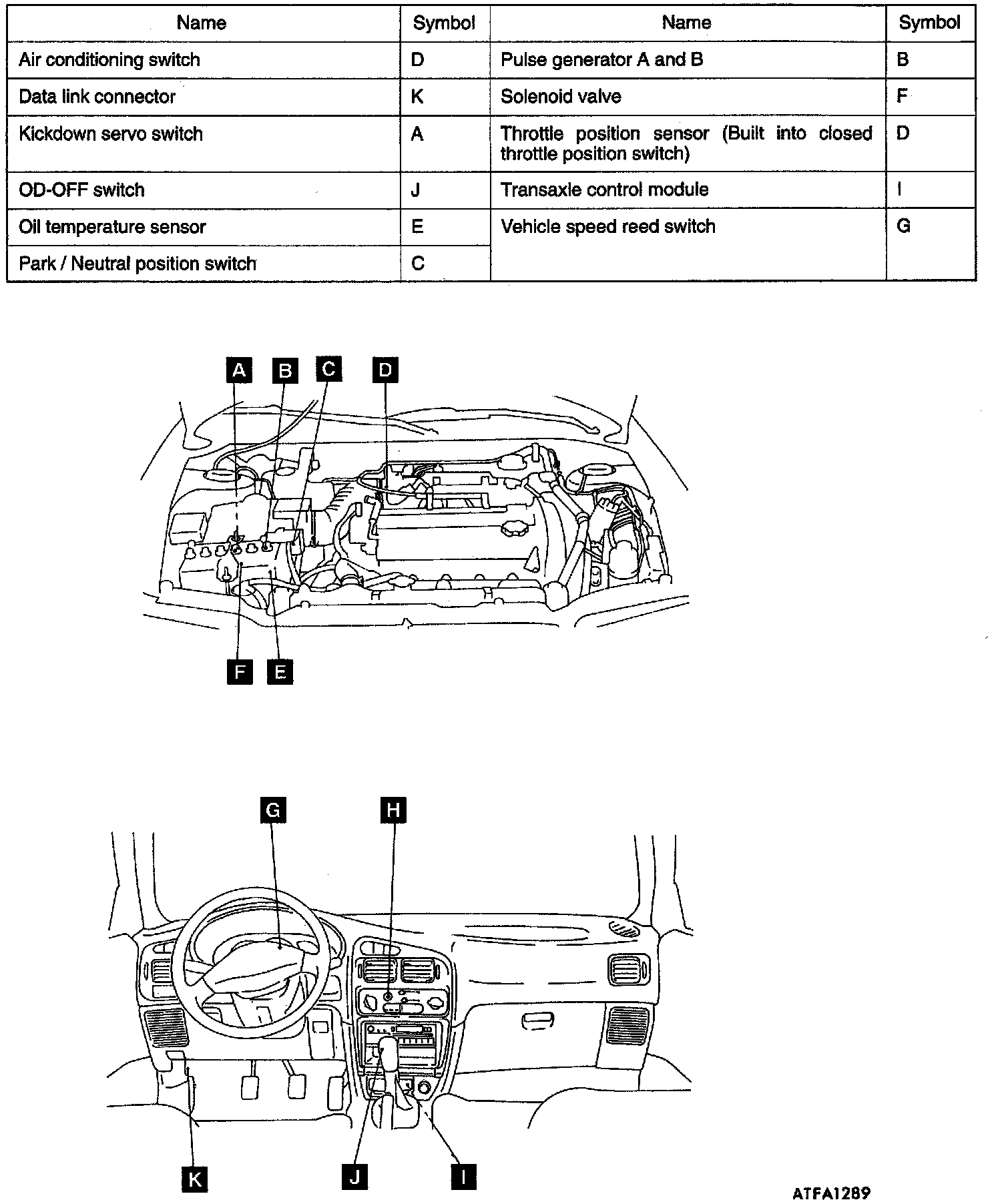

Index
Component Locations:

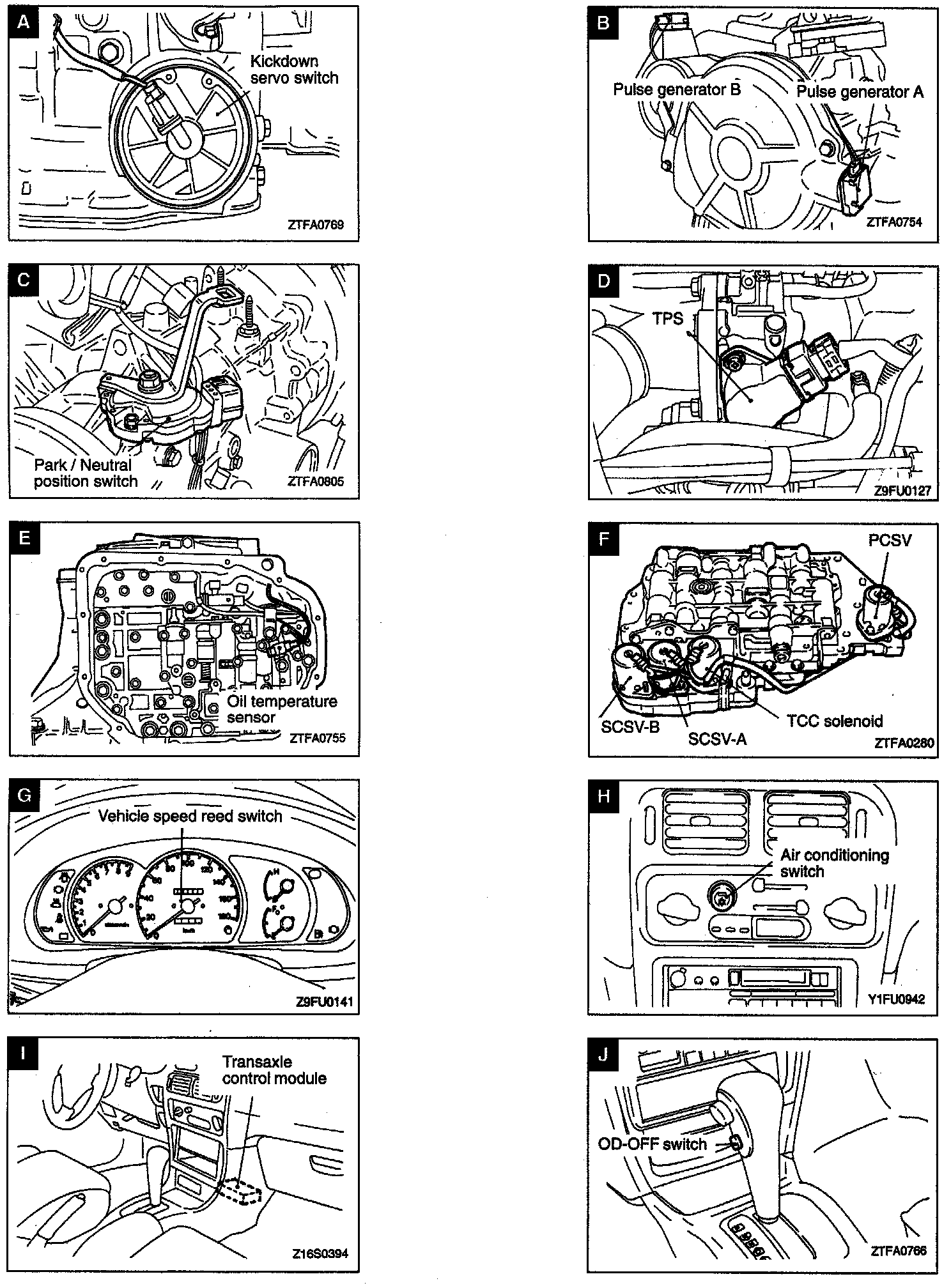

Close-up views A - J
Component Locations:
Close-up view K
