Keyless Entry Control Unit

NOTE: If after all testing procedures are completed, system is not functioning properly, replace keyless entry control unit with known good unit and retest.

Disconnect keyless entry control unit harness connector. Keyless entry control unit is located behind left quarter panel, above wheelwell. Using DVOM, measure voltage between selected terminal and vehicle ground. See Fig 1 and Fig 2 . If voltage is not within specs, inspect and repair circuit as needed. See WIRING DIAGRAMS .

Fig 1: Identifying Control Unit Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

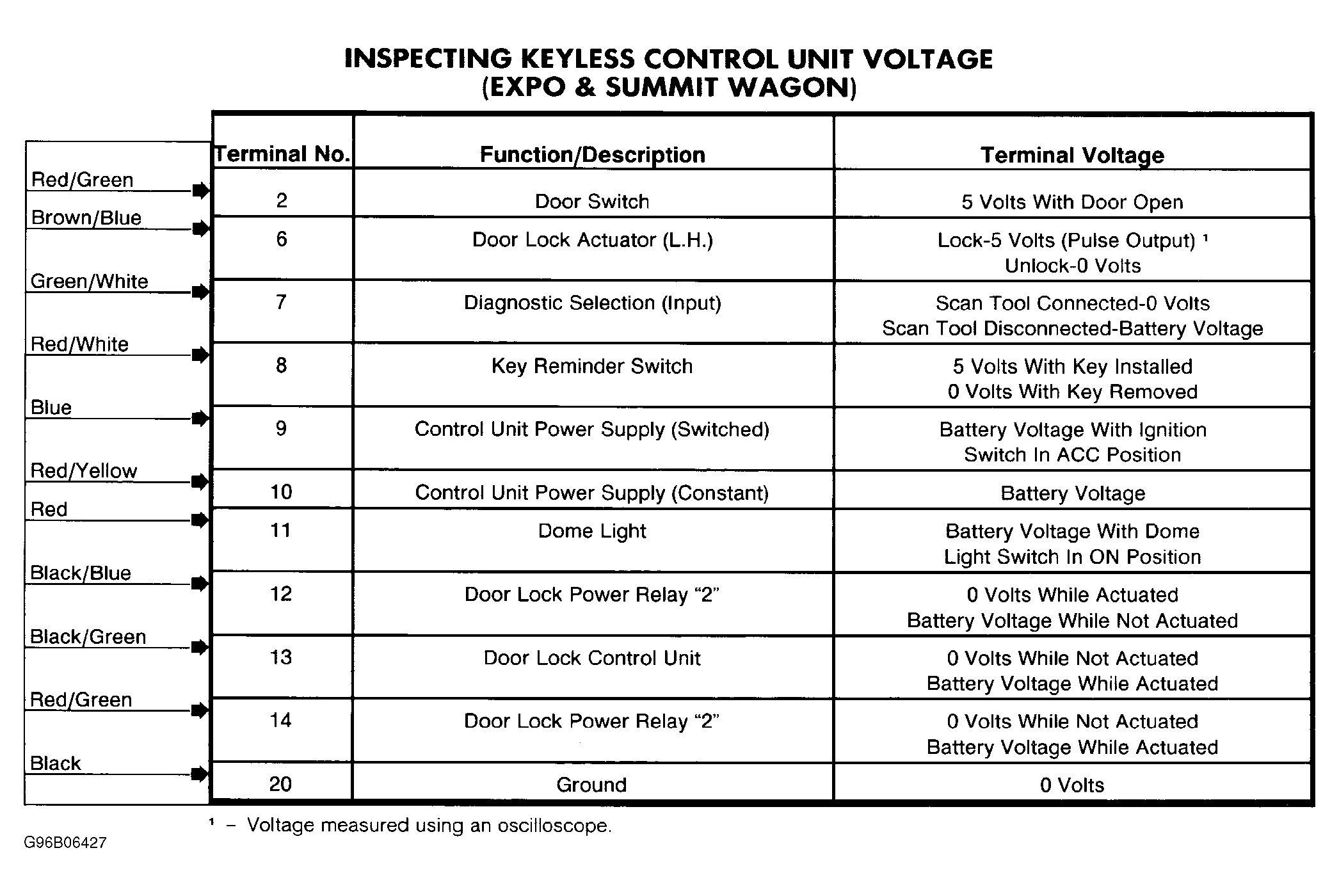

Fig 2: Keyless Entry Control Unit Voltage Chart
