Power Steering Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse removal procedure using NEW "O" ring. Coat "O" ring with Mopar Plus 7176 ATF before installing.
  2. Ensure spring is installed with large end facing upward, toward terminal side of switch. See Fig 1. Tighten power steering pressure switch to specification. See TORQUE SPECIFICATIONS .

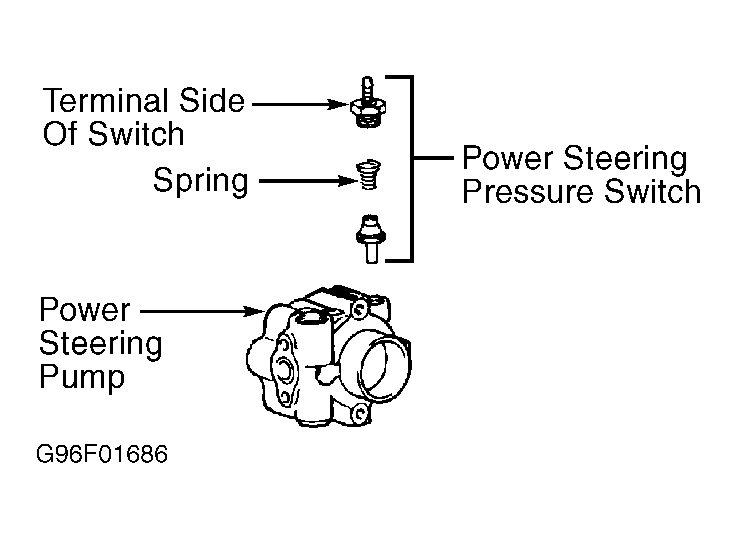

Fig 1: Installing Power Steering Pressure Switch
G96F01686Courtesy of CHRYSLER CORP.
