Cabin Temperature Sensor / Switch: Service and Repair

REMOVAL

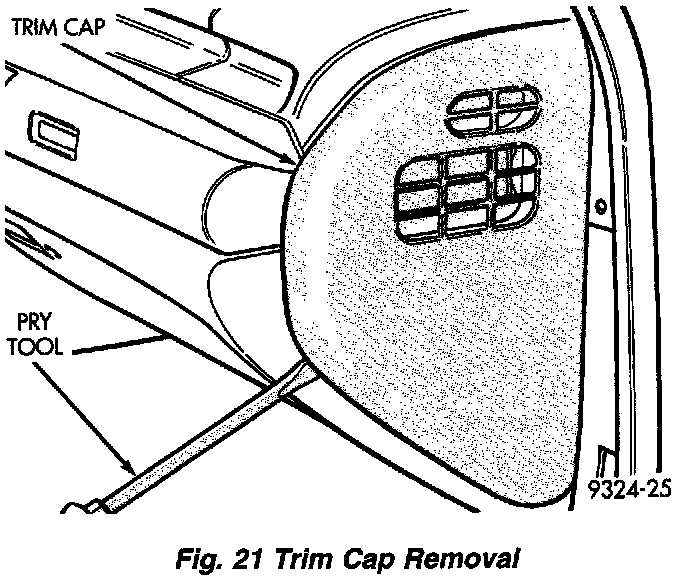

Trim Cap Removal:

1. Remove right side instrument panel trim end cap.

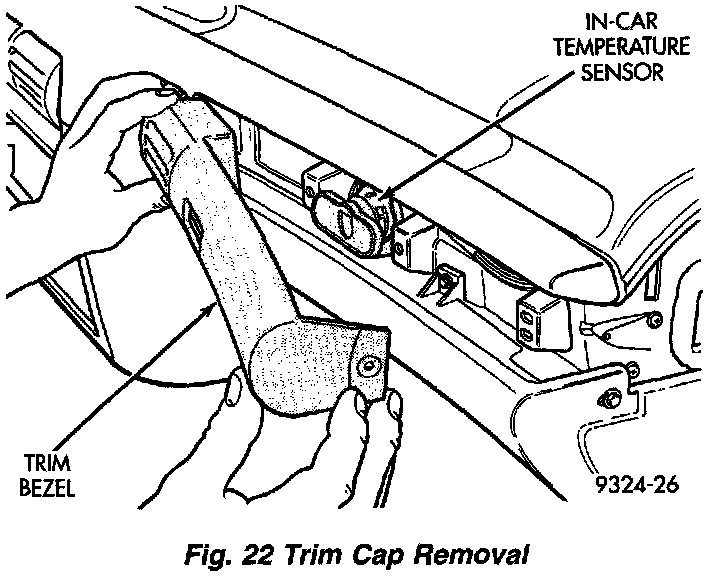

Trim Cap Removal:

2. Remove right trim bezel from instrument panel. It is held in place by friction and a screw.
3. Remove sensor retaining screws.
4. Pull out sensor from instrument panel and disconnect wiring.

INSTALLATION
For installation reverse the above procedures.
