Manifold Pressure/Vacuum Sensor: Service and Repair

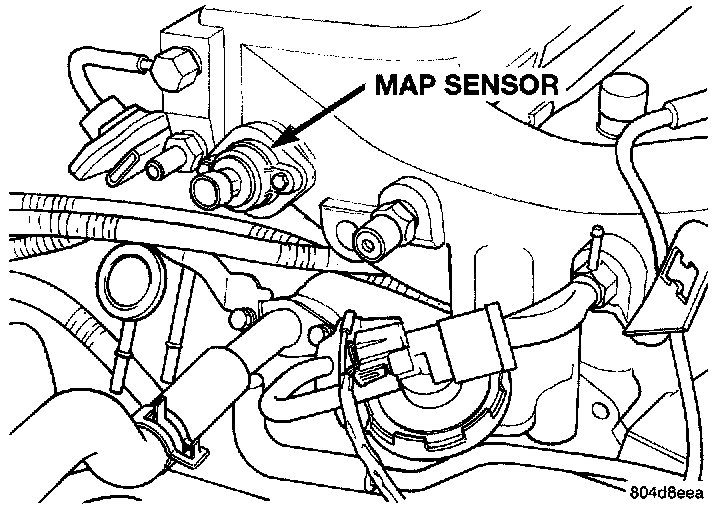

Fig 44 MAP Sensor:

NOTE: The MAP sensor mounts onto the rear of the intake manifold plenum (Fig. 44).


REMOVAL
1. Disconnect the electrical connector from the MAP sensor.
2. Remove sensor.

INSTALLATION
1. The sensor mounts onto intake manifold plenum. Tighten screws to 2 Nm (20 in lb) torque.
2. Attach electrical connector to sensor.
