42LE

Transmission Control Module:

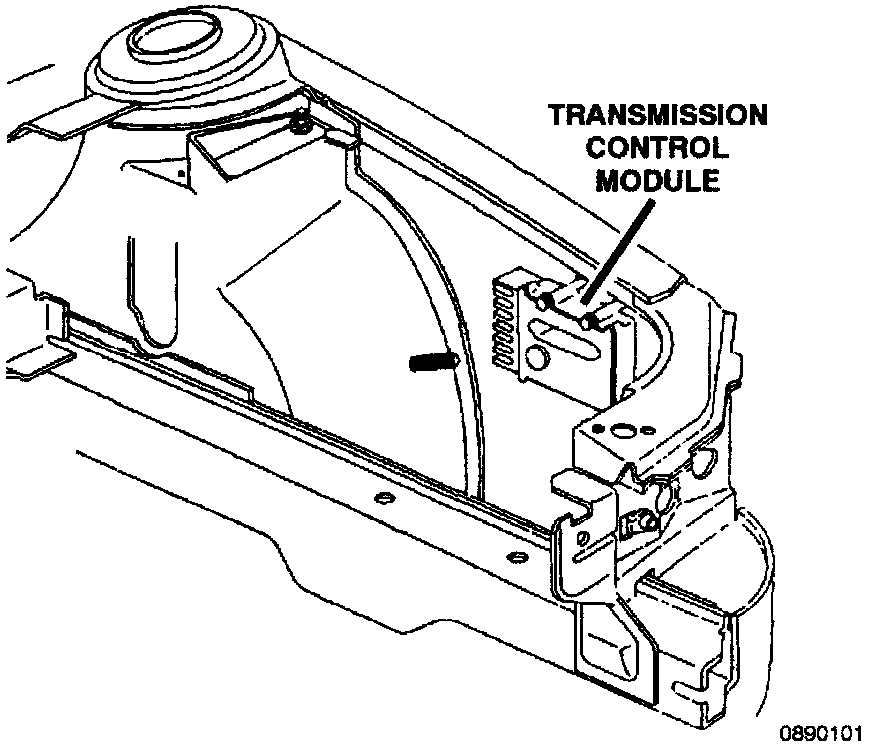

Vehicles equipped with a 42LE electronic transaxle can be identified by the presence of a Transmission Control Module (TCM). See illustration of the TCM.

Autostick Shift Mechanism:






On vehicles equipped with the Auto Stick option, the gear selections on the instrument cluster will read "P R N OD 1 2 3 4" rather than "P R N OD 3 L" as appears on those without the AutoStick feature.
