Eagle
>>
1997
>>
Talon Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System - Remote
>>
Wiring Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagrams
Fig 1: Power Door Lock With Remote Keyless Entry System Wiring Diagram

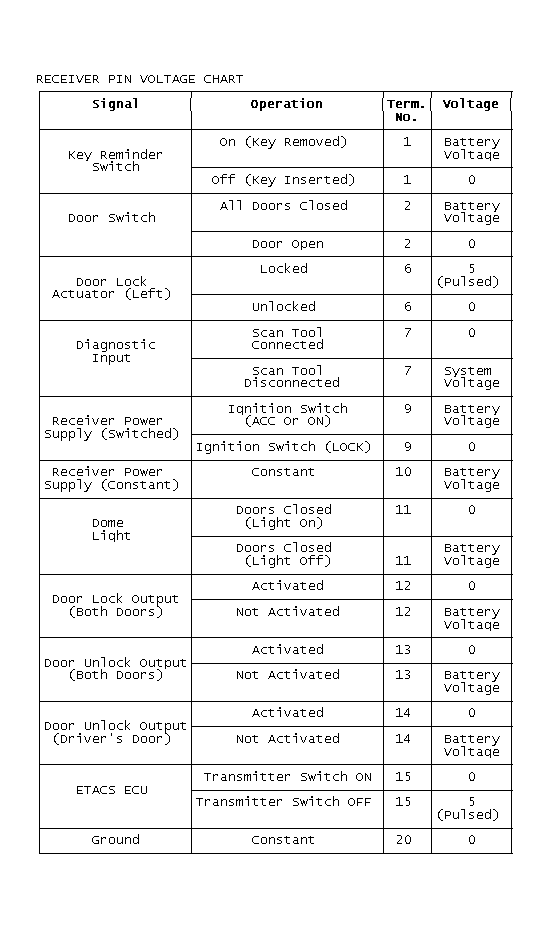

Fig 2: RECEIVER PIN VOLTAGE CHART
