Air Temperature Sensor ( Ambient / Intake ): Service and Repair

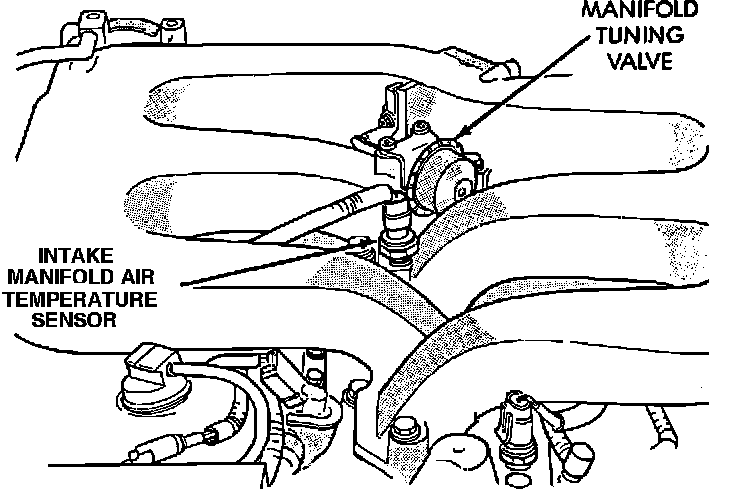

Intake Manifold Air Temperature Sensor 3.5 LH:

REMOVAL
1. Remove engine cover.
2. Disconnect electrical connector from sensor.
3. Remove sensor.

INSTALLATION
1. Install sensor.
- Tighten sensor to 28 Nm (20 ft lb) torque.
2. Attach electrical connector to sensor.
3. Install engine cover.
