Normal Running

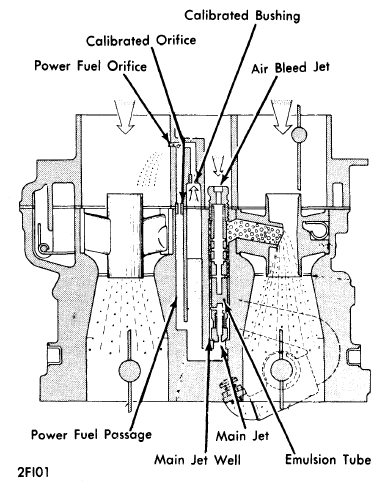

Fuel from float chamber flows through main jet into emulsion tube where it mixes with air from air bleed jet. This mixture is ejected into venturi through spray outlet. Crankcase ventilation device is in normal operating position A (see illustration) and blow-by gas from crankcase is drawn into bottom of carburetor bore below throttle valve.
