MARELLI Regulators: Specifications

Application Specification
Alternator Test RPM 4000 to 5000
1st Stage Testing (Amps) 40-45
2nd Stage Testing (Amps) 10-14
2nd Stage Testing (Volts) 14.2±.3

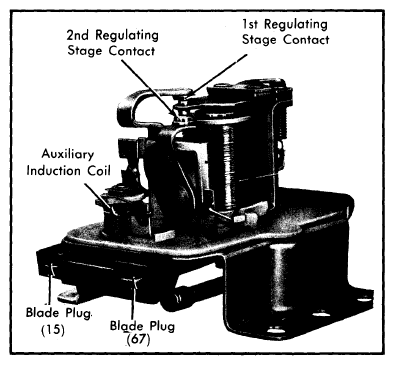

Fig 1: Marelli Voltage Regulator
G09319959Courtesy of NOT AVAILABLE
