Ignition Timing

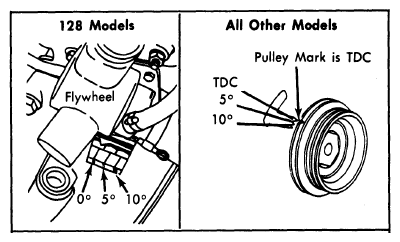

Check or adjust ignition timing with engine at normal operating temperature, manual transmission in Neutral (automatic transmission in Drive), and point gap and idle speed set to specifications. To adjust timing, align mark on drive pulley or flywheel with specified pointer by turning distributor.
1974-77 IGNITION TIMING SPECIFICATIONS
| Application | Timing |
|---|---|
| All Models | TDC |
1978 IGNITION TIMING SPECIFICATIONS
| Application | Timing | ||
|---|---|---|---|
| 131 | |||
| Man. Trans. | |||
| Federal | TDC | ||
| Calif. | 5°BTDC | ||
| All Others | TDC | ||
1979 IGNITION TIMING SPECIFICATIONS
| Application | Timing |
|---|---|
| Brava & Spider | 10°BTDC |
| 128 Models | TDC |
| X1/9 & Strada | 5°BTDC |
