Auto Shutdown Relay - Description






DESCRIPTION

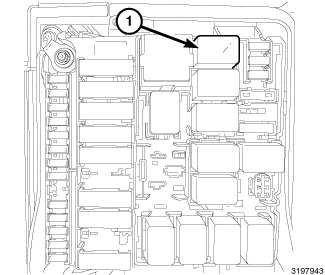

The 5-pin, 12-volt, Automatic Shutdown (ASD) relay (1) is located in the Power Distribution Center (PDC). Always refer to the label on the power distribution center cover for relay location.
