Module, Body Control: Description: Description: Notes

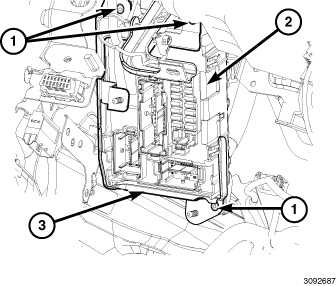

Fig 1: Three Fasteners, BCM, Mounting Bracket

Courtesy of CHRYSLER GROUP, LLC

The Body Control Module (BCM) (2) for this vehicle is located within the instrument panel to the left of the steering column. the BCM houses a small fuse block on the front of the module that house fuses for many of the systems that the BCM supports. The main body of the BCM, including the mounts and the electrical connections, are concealed within the instrument panel.
