Backup Battery

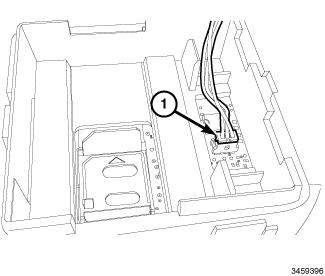

Fig 1: Connector End

Courtesy of CHRYSLER GROUP, LLC

Connect the backup battery connector (1) to the Vehicle Tracking Module (VTM).

Fig 2: Backup Battery
Courtesy of CHRYSLER GROUP, LLC
Place the backup battery (1) into the VTM, be sure that the backup battery wires are not under the backup battery or in a position to be pinched by the backup battery cover.

Fig 3: Backup Battery Cover
Courtesy of CHRYSLER GROUP, LLC
Install the backup battery cover (1).

Fig 4: Vehicle Tracking Module (VTM)
Courtesy of CHRYSLER GROUP, LLC
Install the VTM (1) to the vehicle. Refer to VEHICLE TRACKING MODULE (VTM) .
Connect the negative battery cable.
