Module, Convergence Telematics: Description: Description: Notes

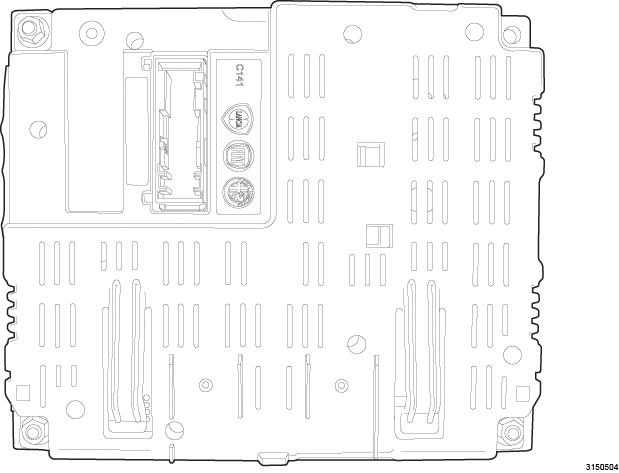

Fig 1: Convergence Telematics Module (CTM)
GC0152918Courtesy of CHRYSLER GROUP, LLC

The convergence telematics module (CTM) is located behind the glove compartment and is attached to a mounting bracket with three nuts.

Blue&Me™ based on Microsoft Auto ™ is a personal infotainment system which allows the use of communication and entertainment applications, specially designed for use on cars. The Blue&Me™ system installed on your car is equipped with hands-free, SMS message reader and Media Player, and it is preset for the installation of additional services that will become available over time.

The Blue&Me™ system, fully integrated with voice commands, buttons on the steering wheel, car radio controls and multifunctional display messages, allows you to interact with your Bluetooth® technology mobile phone (even if you keep it in your pocket or bag) without having to take your eyes off the road or removing your hands from the steering wheel. To use voice commands you are not required to train the voice recognition system to recognize your voice.
