Sensor, Air Temperature, Intake: Installation: Installation

Fig 1: IAT/MAP Sensor O-Ring

Courtesy of CHRYSLER GROUP, LLC

NOTE:

This sensor monitors both Inlet Air Temperature (IAT) and Manifold Air Pressure (MAP).

The IAT/MAP sensor O-ring (1) can be reused if not damaged.
Apply a small amount of engine oil to the sensor O-ring (1).

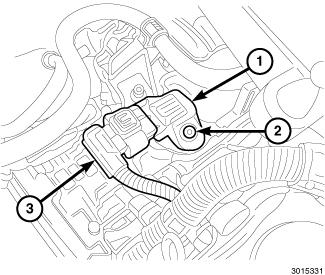

Fig 2: IAT/MAP Sensor, Connector & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the IAT/MAP sensor (1) into the intake manifold with the bolt (2) tightened to 9 N.m (80 in. lbs.).
Connect and lock the electrical connector (3) to the sensor.

Fig 3: Air Cleaner Body Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner body (6). Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION .

Fig 4: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
