Brake Fluid Level Switch - Installation






INSTALLATION





1. Insert brake fluid switch into reservoir until it is firmly in place.

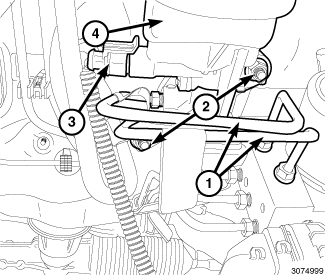

2. Connect the wiring harness connector (3) to the switch.
