Module, Body Control: Installation: Installation

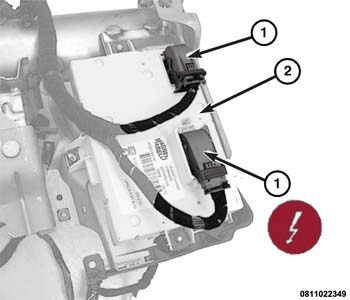

Fig 1: Body Control Module & Electrical Connectors

Courtesy of CHRYSLER GROUP, LLC

Position the Body Control Module (BCM) (2) into the vehicle and connect the two electrical connectors (1) on the back of the module.

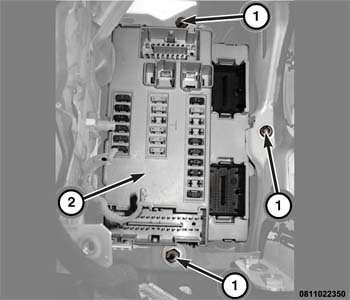

Fig 2: Body Control Module & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Position the BCM (2) to the bracket.
Install and tighten the three screws (1) that secure the BCM to the mounting bracket.
Connect the four electrical connectors on the front side of the BCM.
Position the fuse box cover; install the two fasteners, and tighten.

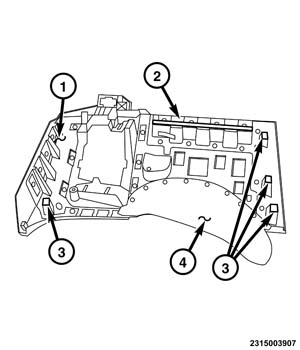

Fig 3: Steering Column Closeout Panel, Retainer Channel & Material
Courtesy of CHRYSLER GROUP, LLC
Position the steering column closeout panel lower retainer channel (2) to the knee blocker air bag bracket.
Fold the material (4) over and inward.
Rotate the steering column closeout panel (1) upward, engaging the retainers (3) fully.

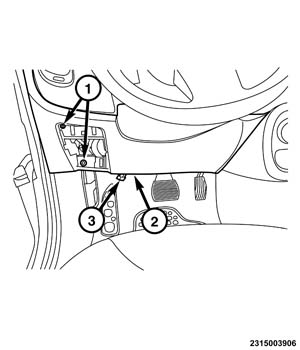

Fig 4: Diagnostic Terminal, Steering Column Closeout & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the two fasteners (1) into the fuse access area and tighten securely.
Position and secure the diagnostic terminal (3) to the steering column closeout panel (2).

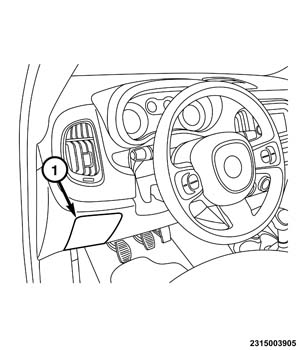

Fig 5: Fuse Access Cover
Courtesy of CHRYSLER GROUP, LLC
Position the fuse access cover (1) to the instrument panel cover.
Engage the fuse access cover (1) retaining clips fully.
Connect the negative battery cable.

NOTE:

If the Body Control Module (BCM) is being replaced with a new unit, a diagnostic scan tool MUST be used to run the Configure Door Locks procedure. Refer to MODULE, BODY CONTROL, MODULE PROGRAMMING .
