Intake Air Temperature Pressure Sensor

REMOVAL

1. Disconnect the negative battery terminal.

   Courtesy of CHRYSLER GROUP, LLC

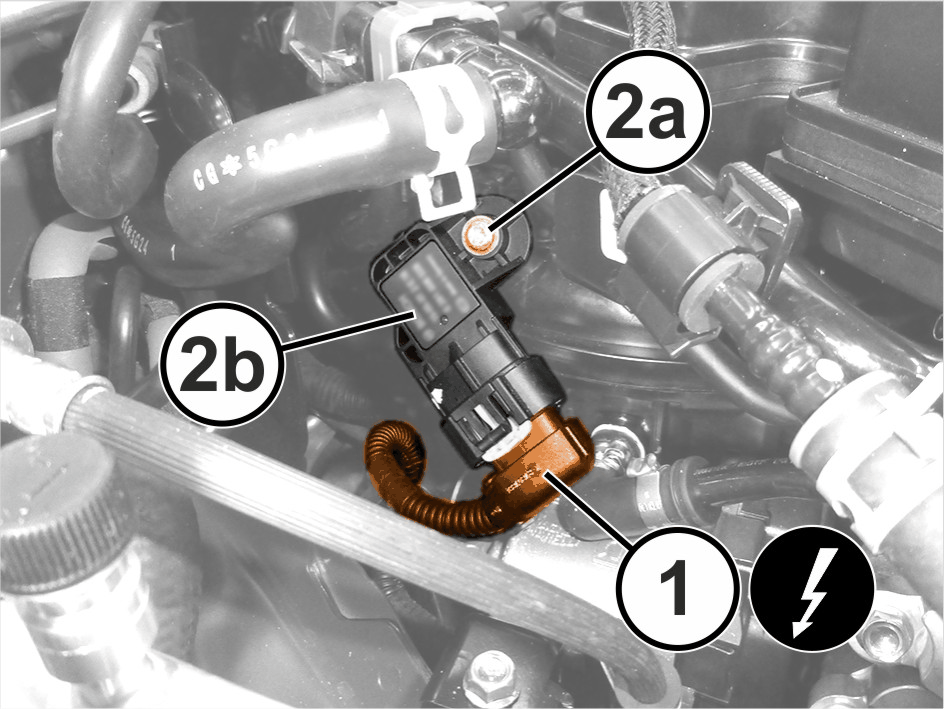

2. Disconnect the electrical connection (1) for the intake air pressure/temperature sensor.
3. Undo the bolt (2a) and remove the intake air temperature/pressure sensor (2b).

INSTALLATION

1. Place the aspirated air temperature/pressure sensor back in its housing and tighten the screw.
2. Connect the electrical connection for the aspirated air temperature/pressure sensor.
3. Connect the negative battery terminal.
