Disassembly And Assembly

DISASSEMBLY

1. Remove the transmission from the vehicle. Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

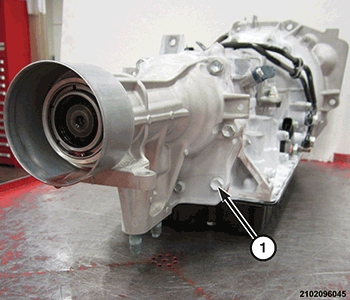

2. Remove the drain plug and gasket (1) and drain the transmission fluid.

   Courtesy of CHRYSLER GROUP, LLC

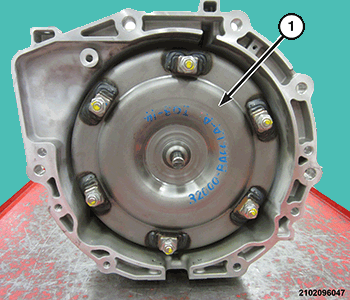

3. Remove the torque converter (1).

   Courtesy of CHRYSLER GROUP, LLC

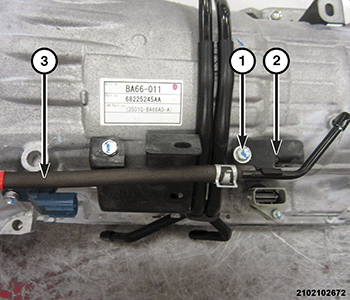

4. Remove the breather pipe bracket bolt (1), the breather pip bracket (2) and the breather pipe assembly (3).

   Courtesy of CHRYSLER GROUP, LLC

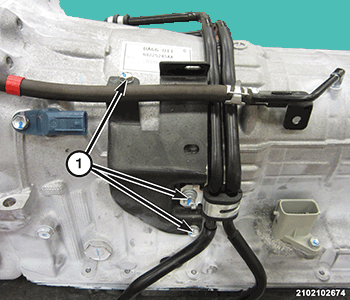

5. Remove the transmission cooler tube bracket bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

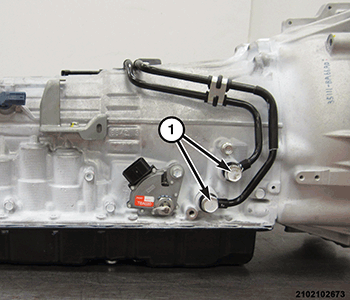

6. Remove the cooler tube retaining bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

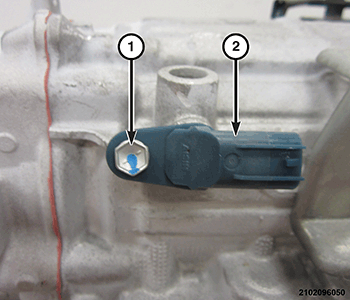

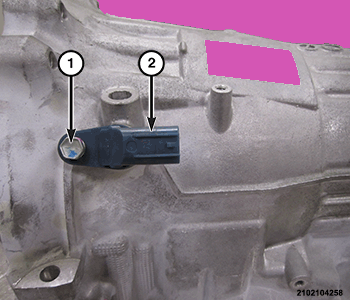

7. Remove the Output Speed Sensor (OSS) bolt (1) and the OSS (2).

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the Input Speed Sensor (ISS) bolt (1) and the ISS (2).

   Courtesy of CHRYSLER GROUP, LLC

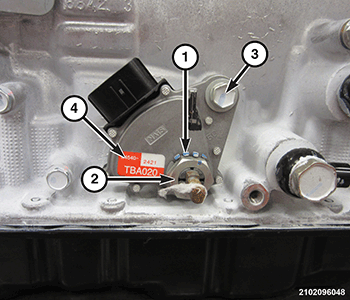

9. Lift up the lock washer (1) using a suitable screwdriver.
10. Remove the nut (2) and lock washer (1).
11. Remove the Transmission Range (TR) switch bolt (3).
12. Remove the TR switch (4).

    Courtesy of CHRYSLER GROUP, LLC

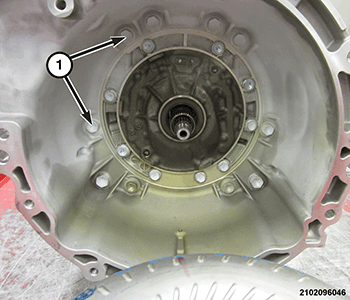

13. Remove the eight torque converter housing bolts (1) as shown in the figure.

    Courtesy of CHRYSLER GROUP, LLC

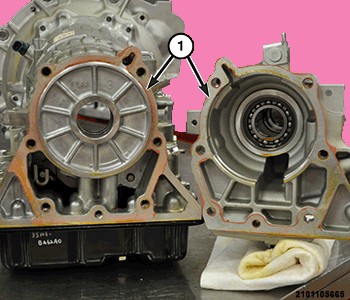

14. Remove the seven extension housing bolts (1) as shown in the figure.
15. Using a plastic hammer, tap the extension housing to remove the extension housing.

    Courtesy of CHRYSLER GROUP, LLC

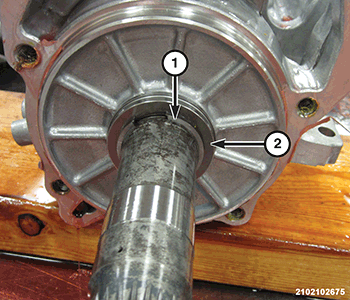

16. Remove the snap ring (1) using snap ring pliers and remove the bearing (2).

    Courtesy of CHRYSLER GROUP, LLC

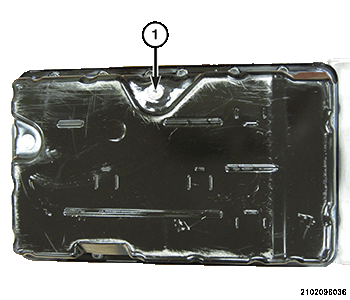

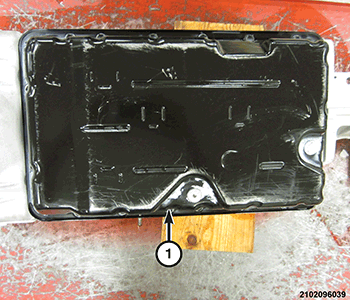

17. Remove the transmission oil pan bolts (1) and remove the transmission oil pan and gasket.

    Courtesy of CHRYSLER GROUP, LLC

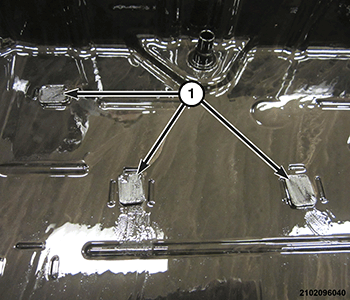

18. Remove the three magnets (1) from the transmission oil pan.
    NOTE:

    Inspect the transmission oil pan for foreign material and determine the worn areas of the transmission. For ferrous metal related areas, check for wear of the bearings, gears, and plates. For brass related metal (non-magnetized), check for bushing wear.

    Courtesy of CHRYSLER GROUP, LLC

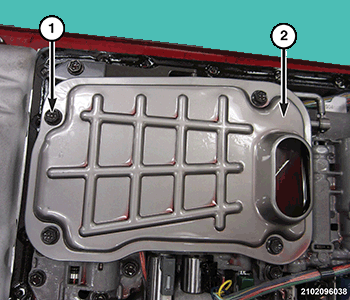

19. Remove the four transmission oil filter bolts (1) and the transmission oil filter (2).

    Courtesy of CHRYSLER GROUP, LLC

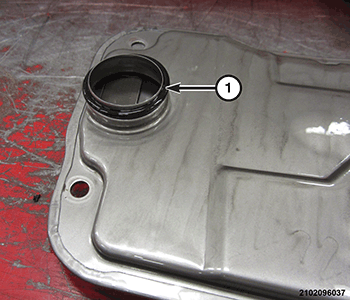

20. Remove the O-ring (1) from the transmission oil filter.

    Courtesy of CHRYSLER GROUP, LLC

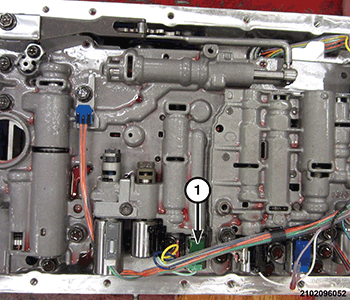

21. Disconnect the solenoid wire harness connectors (1) from the solenoids.

    Courtesy of CHRYSLER GROUP, LLC

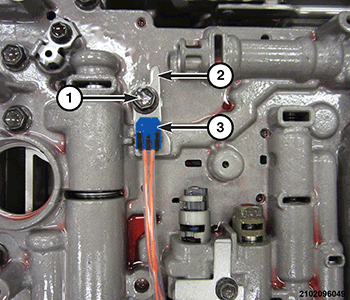

22. Remove the transmission temperature lock plate bolt (1), the lock plate (2) and the transmission temperature sensor (3).

    Courtesy of CHRYSLER GROUP, LLC

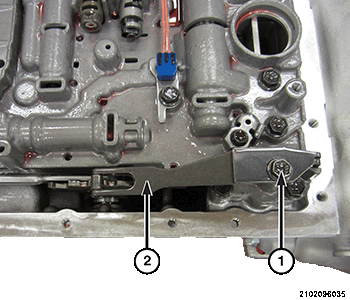

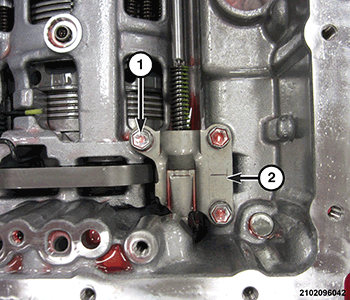

23. Remove the detent spring bolt (1) and the detent spring (2).

    Courtesy of CHRYSLER GROUP, LLC

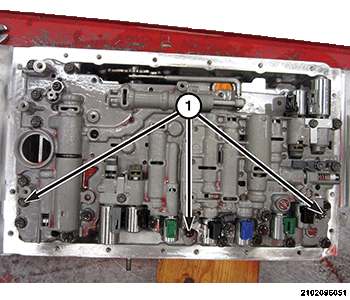

24. Remove the 19 valve body bolts (1).
    NOTE:

    Take note of the length and location of each bolt for installation.

    Courtesy of CHRYSLER GROUP, LLC

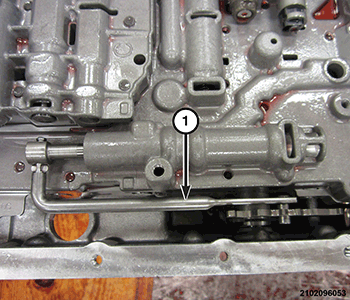

25. Disconnect the manual valve link (1) and remove the valve body.

    Courtesy of CHRYSLER GROUP, LLC

26. Remove the check valve and compression spring (1).

    Courtesy of CHRYSLER GROUP, LLC

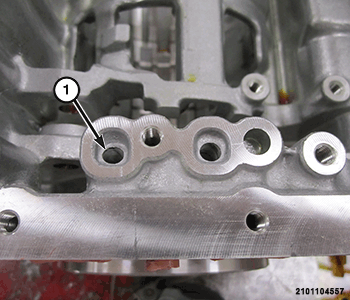

27. Remove the three transmission case gaskets and three brake drum gaskets (1).

    Courtesy of CHRYSLER GROUP, LLC

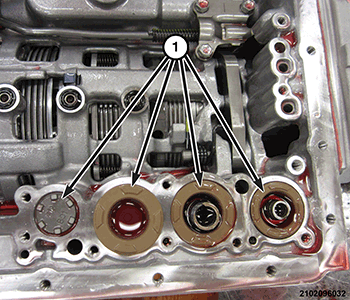

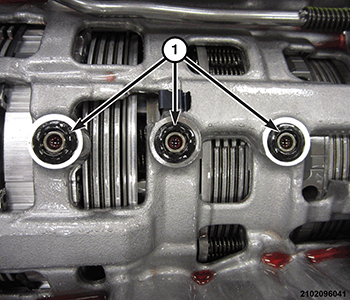

28. If needed, lightly blow compressed air into the oil passage and remove the accumulator pistons and springs (1).
    NOTE:

    Take note of each spring color and location.

    Courtesy of CHRYSLER GROUP, LLC

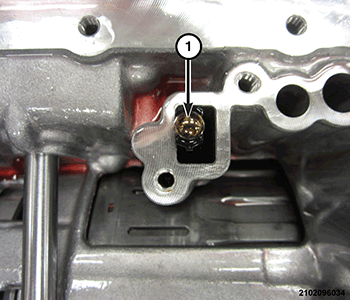

29. Remove the park rod bracket bolts (1) and the bracket (2).

    Courtesy of CHRYSLER GROUP, LLC

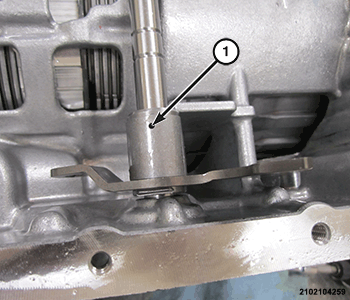

30. Remove the parking rod (1) from the manual valve lever.

    Courtesy of CHRYSLER GROUP, LLC

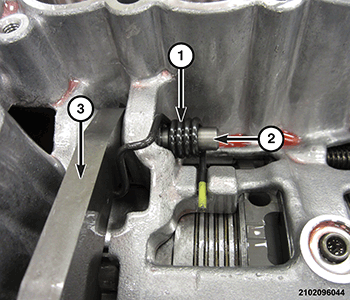

31. Remove the park pawl shaft (2), the park pawl spring (1) and the park pawl (3).

    Courtesy of CHRYSLER GROUP, LLC

32. Align the sleeve hole (1) with the pin.

    Courtesy of CHRYSLER GROUP, LLC

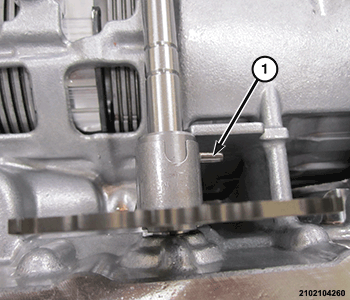

33. Using a hammer and pin punch, remove the pin (1).

    Courtesy of CHRYSLER GROUP, LLC

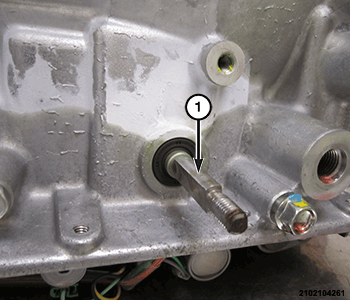

34. Pull out the manual shaft (1).

    Courtesy of CHRYSLER GROUP, LLC

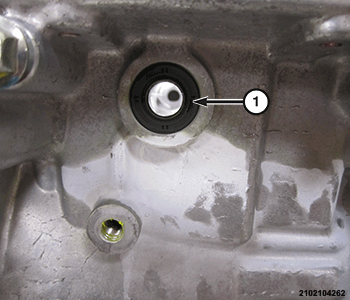

35. Using a flat head screwdriver, remove the manual shaft oil seal (1).

    Courtesy of CHRYSLER GROUP, LLC

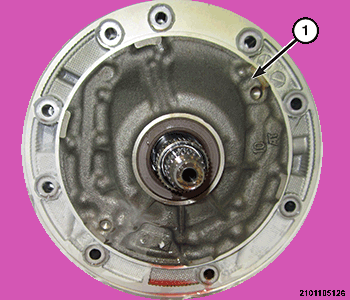

36. Remove the bolts (1) from the transmission oil pump and remove the transmission oil pump.

    Courtesy of CHRYSLER GROUP, LLC

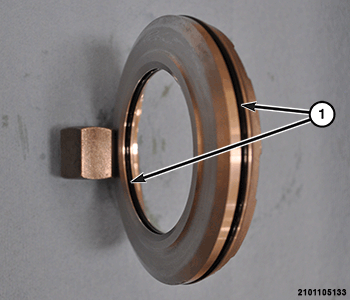

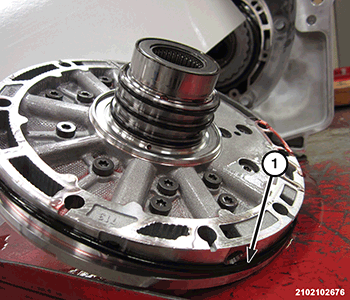

37. Remove the O-ring (1) from the transmission oil pump.

    Courtesy of CHRYSLER GROUP, LLC

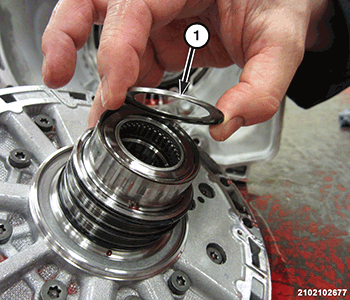

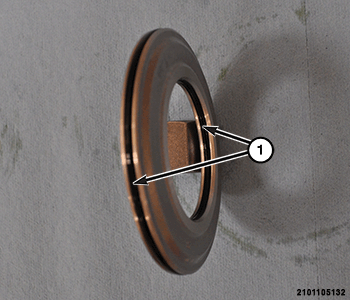

38. Remove the thrust needle bearing and bearing race (1) from the transmission oil pump.

    Courtesy of CHRYSLER GROUP, LLC

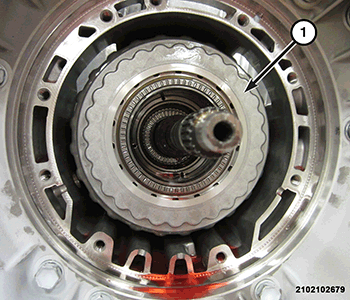

39. Remove the clutch drum assembly (1).

    Courtesy of CHRYSLER GROUP, LLC

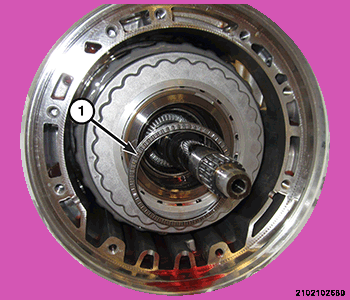

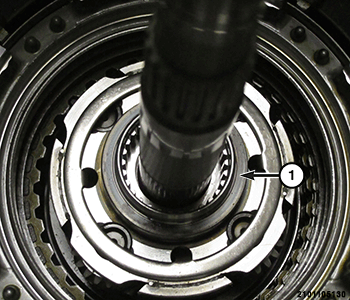

40. Remove the thrust needle bearing and bearing race (1) from the clutch drum.

    Courtesy of CHRYSLER GROUP, LLC

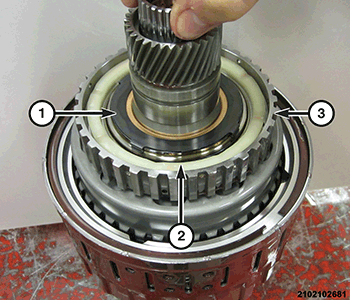

41. Remove the thrust washers (1, 2) and F2 one-way clutch (3) from the clutch drum.

    Courtesy of CHRYSLER GROUP, LLC

42. Remove the snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

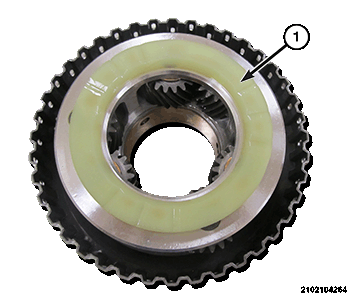

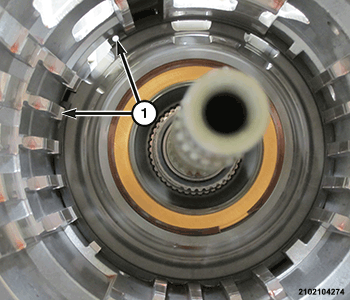

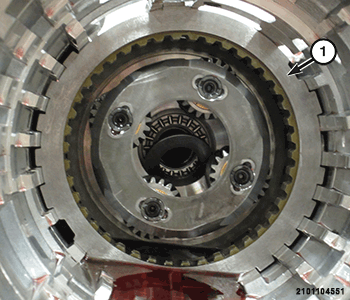

43. Remove the retaining plates, drive and driven plates (1).
44. Inspect the lining of all drive plates. If the lining is flaking or has changed color, or if it is worn or the print mark is wearing away, replace with a new drive plate. When replacing, inspect the contact surfaces between the retaining plate, driven plate and drive plate. If they are scratched or have changed color, replace with new parts.

    Courtesy of CHRYSLER GROUP, LLC

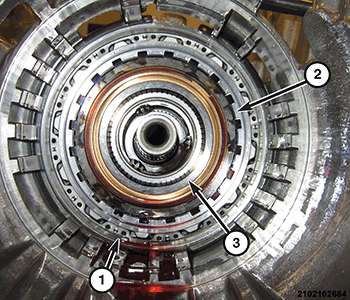

45. Remove the F1 one-way clutch (3).
46. Remove the snap ring (1) and the B2 brake piston (2).

    Courtesy of CHRYSLER GROUP, LLC

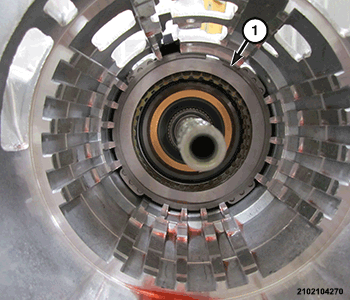

47. Remove the thrust washer (1) and the bearing race (2).

    Courtesy of CHRYSLER GROUP, LLC

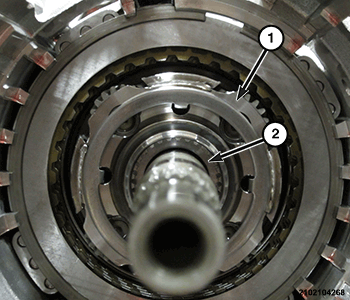

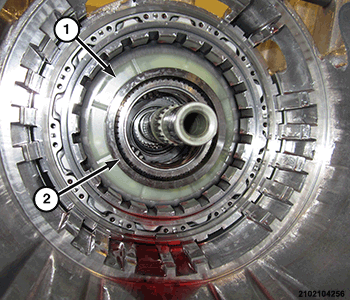

48. Remove the front planetary gear (1).

    Courtesy of CHRYSLER GROUP, LLC

49. Remove the thrust washer (1).

    Courtesy of CHRYSLER GROUP, LLC

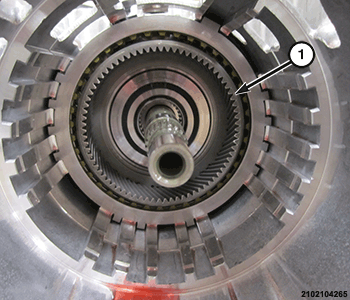

50. Remove the front and middle ring gear (1).

    Courtesy of CHRYSLER GROUP, LLC

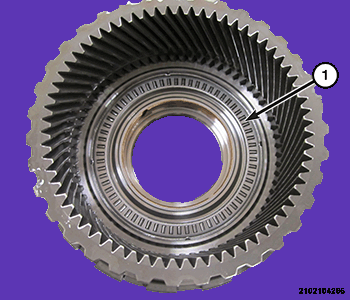

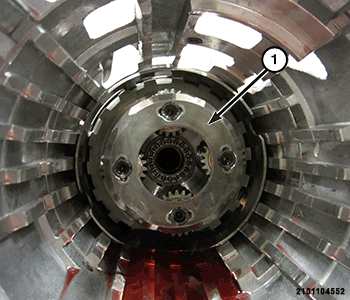

51. Remove the bearing race and thrust needle bearing (1) from front and middle ring gear.

    Courtesy of CHRYSLER GROUP, LLC

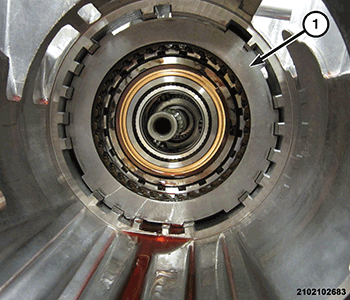

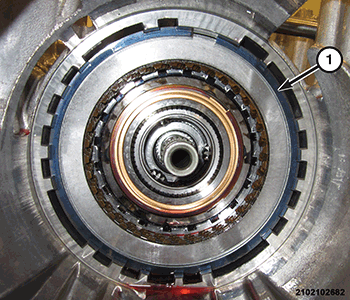

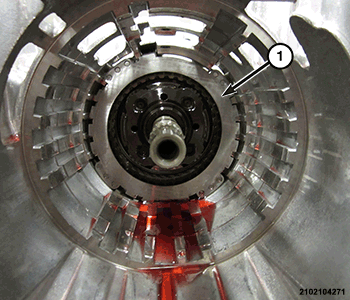

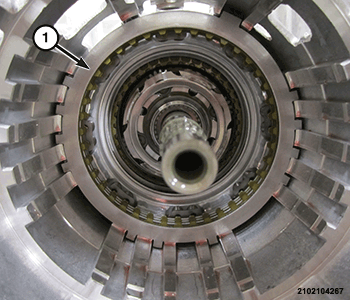

52. Remove the retaining plates, drive and driven plates (1).
53. Inspect the lining of all drive plates. If the lining is flaking or has changed color, or if it is worn or the print mark is wearing away, replace with a new drive plate. When replacing, inspect the contact surfaces between the retaining plate, driven plate and drive plate. If they are scratched or have changed color, replace with new parts.

    Courtesy of CHRYSLER GROUP, LLC

54. Remove the bearing race and thrust needle bearing (1) from middle planetary gear.

    Courtesy of CHRYSLER GROUP, LLC

55. Remove the middle planetary gear (1) and sun gear (2).

    Courtesy of CHRYSLER GROUP, LLC

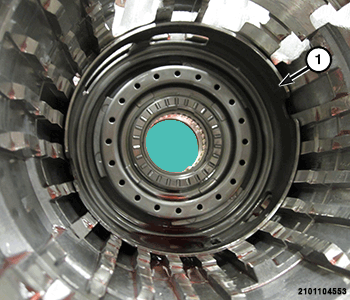

56. Remove the snap ring (1).
57. Remove the piston return spring (2) and B1 brake piston (3).

    Courtesy of CHRYSLER GROUP, LLC

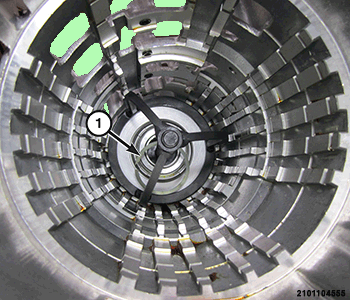

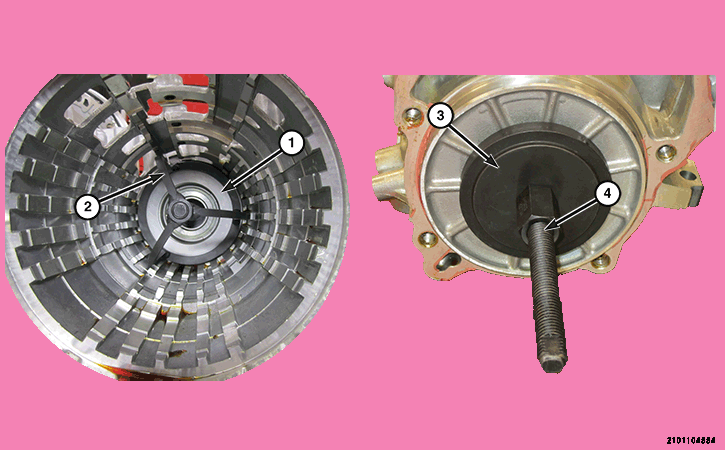

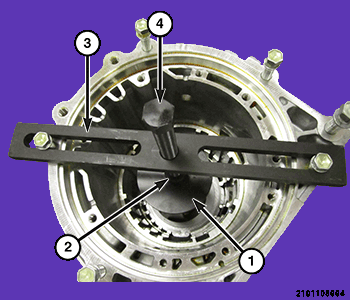

58. Using tools (special tool #9725, Compressor, Spring) (1), (special tool #8244, Puller, Extension Housing) (3, 4) and (special tool #6055, Thrust Button) (2), compress the B2 brake piston spring.

    Courtesy of CHRYSLER GROUP, LLC

NOTE:

Tools not shown installed for clarity.

59. Remove the B2 brake piston snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

60. Remove the driven plate, the retaining plates, drive and driven plates and the piston return spring (1).
61. Inspect the lining of all drive plates, If the lining is flaking or has changed color, or if it is worn or the print mark is wearing away, replace with a new drive plate. When replacing, inspect the contact surfaces between the retaining plate, driven plate and drive plate. If they are scratched or have changed color, replace with new parts.

    Courtesy of CHRYSLER GROUP, LLC

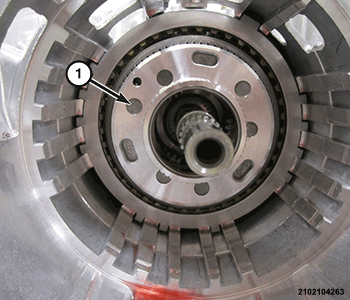

62. Remove the B2 brake piston (1).

    Courtesy of CHRYSLER GROUP, LLC

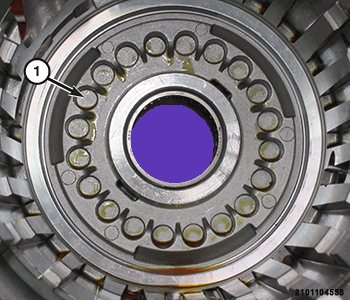

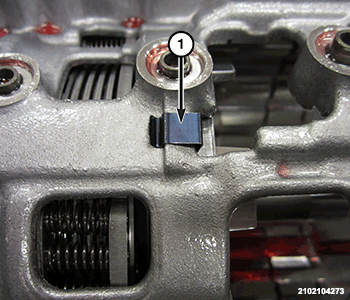

63. Remove the stopper spring (1).

    Courtesy of CHRYSLER GROUP, LLC

64. Using snap ring pliers, remove the snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

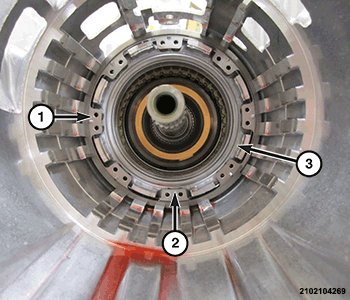

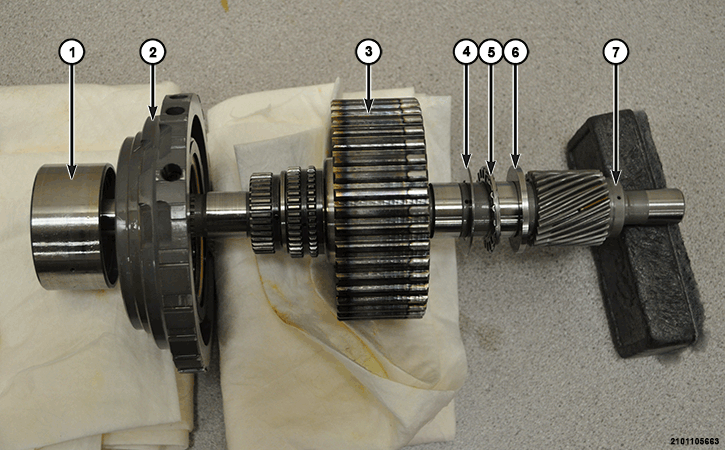

65. Remove the intermediate shaft assembly and disassemble in the order indicated below:

    1	Inner race
    2	F3 one-way clutch
    3	Rear ring gear
    4	Bearing race
    5	Needle bearing
    6	Bearing race
    7	Intermediate shaft

    Courtesy of CHRYSLER GROUP, LLC

66. Remove the retaining plates, drive and driven plates (1).
67. Inspect the lining of all drive plates. If the lining is flaking or has changed color, or if it is worn or the print mark is wearing away, replace it with a new drive plate. When replacing, inspect the contact surfaces between the retaining plate, driven plate and drive plate. If they are scratched or have changed color, replace with new parts.

    Courtesy of CHRYSLER GROUP, LLC

68. Remove the rear planetary gear and bearing race and thrust needle bearing (1).

    Courtesy of CHRYSLER GROUP, LLC

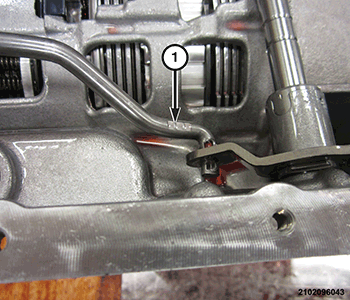

69. Remove the brake tube (1).

    Courtesy of CHRYSLER GROUP, LLC

70. Compress the piston return spring using the special tools (special tool #5059-A, 5059B Compressor, Spring) (2), (special tool #2022000210, Press Ring, Clutch Spring) (1) , (special tool #6310-2, Disc) , (special tool #6310-7, Nut) and (special tool #6310, 6310-4 Remover, Bearing/Seal).

    Courtesy of CHRYSLER GROUP, LLC

71. Remove the snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

72. Remove the piston return spring (1).

    Courtesy of CHRYSLER GROUP, LLC

73. Blow compressed air into the oil passage (1) shown in the figure while pressing the B4 brake piston by hand.

    Courtesy of CHRYSLER GROUP, LLC

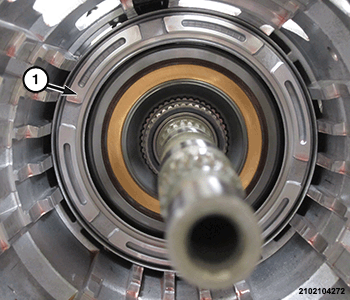

74. Remove the B4 brake piston (1).

    Courtesy of CHRYSLER GROUP, LLC

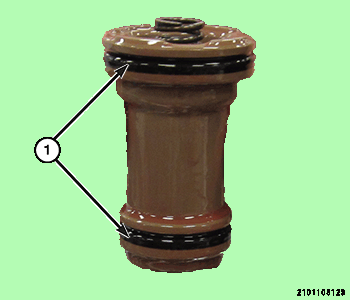

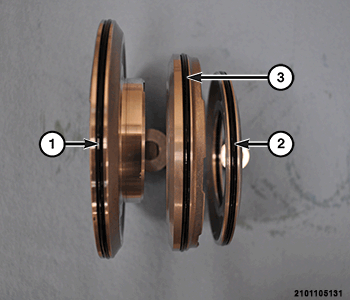

75. Remove the inner brake piston (2) and sleeve (3) from the B4 brake piston (1).

    Courtesy of CHRYSLER GROUP, LLC

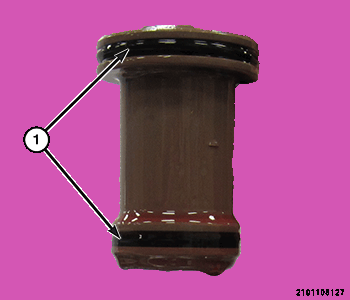

76. Remove the O-rings (1) from the inner brake piston.

    Courtesy of CHRYSLER GROUP, LLC

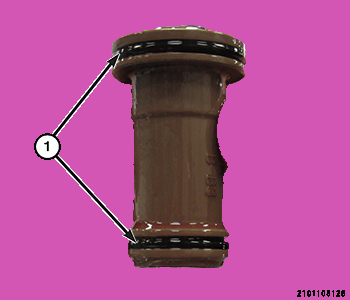

77. Remove the O-rings (1) from the brake piston sleeve.

    Courtesy of CHRYSLER GROUP, LLC

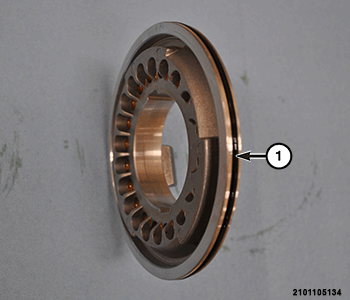

78. Remove the O-ring (1) from the B4 brake piston.

ASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

1. Install a NEW  O-ring (1) on the B4 brake piston.

   Courtesy of CHRYSLER GROUP, LLC

2. Install NEW  O-rings (1) on the inner B4 brake piston.

   Courtesy of CHRYSLER GROUP, LLC

3. Install NEW  O-rings (1) on the B4 brake piston sleeve.

   Courtesy of CHRYSLER GROUP, LLC

4. Assemble the B4 brake piston assembly (1, 2, 3)

   Courtesy of CHRYSLER GROUP, LLC

5. Install the B4 brake piston (1).

   Courtesy of CHRYSLER GROUP, LLC

6. Install the B4 brake piston return spring (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Compress the B4 brake piston return spring using special tools (special tool #5059-A, 5059B Compressor, Spring) (2), (special tool #2022000210, Press Ring, Clutch Spring) (1) , (special tool #6310-2, Disc) , (special tool #6310-7, Nut) and (special tool #6310, 6310-4 Remover, Bearing/Seal).

   Courtesy of CHRYSLER GROUP, LLC

8. Install the B4 brake piston return spring snap ring (1).

   Courtesy of CHRYSLER GROUP, LLC

9. Install the brake tube (1).

   Courtesy of CHRYSLER GROUP, LLC

10. Install the rear planetary (1), bearing race and thrust needle bearing.

    Courtesy of CHRYSLER GROUP, LLC

11. Install the retaining plates, drive and driven plates (1).

    Courtesy of CHRYSLER GROUP, LLC

12. Install the intermediate shaft assembly (1-7).
    NOTE:

    Make sure these components are installed:

    1	Inner race
    2	F3 one-way clutch
    3	Rear ring gear
    4	Bearing race
    5	Needle bearing
    6	Bearing race
    7	Intermediate shaft

    Courtesy of CHRYSLER GROUP, LLC

13. Install the intermediate shaft assembly snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

14. Install the stopper spring (1) in the transmission case.

    Courtesy of CHRYSLER GROUP, LLC

15. Install the B2 brake piston (1).

    Courtesy of CHRYSLER GROUP, LLC

16. Install the B2 brake piston return spring, retaining plates, drive and driven plates (1).

    Courtesy of CHRYSLER GROUP, LLC

17. Using tools (special tool #9725, Compressor, Spring) (1), (special tool #8244, Puller, Extension Housing) (3, 4) and (special tool #6055, Thrust Button) (2), compress the B2 brake piston spring.

    Courtesy of CHRYSLER GROUP, LLC

NOTE:

Image shown without special tools for clarity.

18. With the special service tools still installed, install the B2 brake piston snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

19. Install the B1 brake piston (3) and piston return spring (2).

    Courtesy of CHRYSLER GROUP, LLC

20. Install the B1 brake piston snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

21. Install the middle planetary gear (1) and the sun gear (1).

    Courtesy of CHRYSLER GROUP, LLC

22. Install the front planetary bearing race and thrust needle bearing (1).
    NOTE:

    Before replacing with new drive plates, soak them at least 2 hours in ATF.

    Courtesy of CHRYSLER GROUP, LLC

23. Install the B1 retaining plates, drive and driven plates (1).

    Courtesy of CHRYSLER GROUP, LLC

24. Install the front and middle ring gear bearing race and thrust needle bearing (1).

    Courtesy of CHRYSLER GROUP, LLC

25. Install the front and middle ring gear (1).

    Courtesy of CHRYSLER GROUP, LLC

26. Install the front planetary gear thrust washer (1).

    Courtesy of CHRYSLER GROUP, LLC

27. Install the front planetary gear (1).

    Courtesy of CHRYSLER GROUP, LLC

28. Install the F1 one-way clutch inner race sub-assembly (2) and thrust washer (1).

    Courtesy of CHRYSLER GROUP, LLC

29. Install the F1 one-way clutch (3).
30. Install the B3 brake piston and cylinder assembly (2).
31. Install the B3 brake piston and cylinder assembly snap ring (1).
    NOTE:

    Before replacing with new drive plates, soak them at least 2 hours in ATF.

    Courtesy of CHRYSLER GROUP, LLC

32. Install the B3 retaining plates, drive and driven plates (1).

    Courtesy of CHRYSLER GROUP, LLC

33. Install the snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

34. Install the thrust washer (2) and the F2 one-way clutch (3) on the clutch drum.
35. Install the thrust needle bearing race (1) on the clutch drum.

    Courtesy of CHRYSLER GROUP, LLC

36. Install the thrust needle bearing (1).

    Courtesy of CHRYSLER GROUP, LLC

37. Install the clutch drum assembly (1).

    Courtesy of CHRYSLER GROUP, LLC

38. Install the thrust needle bearing and bearing race (1) on the transmission oil pump.

    Courtesy of CHRYSLER GROUP, LLC

39. Install a NEW  O-ring (1) on the transmission oil pump.

    Courtesy of CHRYSLER GROUP, LLC

40. Install the transmission oil pump (1).

    Courtesy of CHRYSLER GROUP, LLC

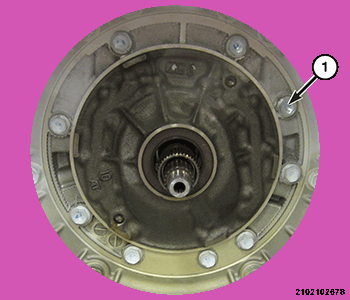

41. Install the transmission oil pump bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

42. Install the manual shaft seal (1).

    Courtesy of CHRYSLER GROUP, LLC

43. Install the manual shaft (1).

    Courtesy of CHRYSLER GROUP, LLC

44. Install the new manual shaft sleeve and retaining pin (1).

    Courtesy of CHRYSLER GROUP, LLC

45. Using a pin punch, dimple the manual shaft sleeve (1).

    Courtesy of CHRYSLER GROUP, LLC

46. Install the park pawl (3), park pawl spring (1) and park pawl shaft (2).

    Courtesy of CHRYSLER GROUP, LLC

47. Install the parking rod (1) to the manual valve lever.

    Courtesy of CHRYSLER GROUP, LLC

48. Install the parking pawl bracket (2), the parking pawl bracket bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

49. Install the NEW  O-rings (1) on accumulator piston C.

    Courtesy of CHRYSLER GROUP, LLC

50. Install the NEW  O-rings (1) on accumulator piston B.

    Courtesy of CHRYSLER GROUP, LLC

51. Install the NEW  O-rings (1) on accumulator piston A.

    Courtesy of CHRYSLER GROUP, LLC

52. Install the accumulator pistons (1) and compression springs.

    Courtesy of CHRYSLER GROUP, LLC

53. Install the transmission case gaskets and brake drum gaskets (1).

    Courtesy of CHRYSLER GROUP, LLC

54. Install the check valve and compression spring (1).

    Courtesy of CHRYSLER GROUP, LLC

55. Connect the manual valve link (1) to the valve body and position the valve body in place.

    Courtesy of CHRYSLER GROUP, LLC

56. Using the bolt location noted during removal, install the 19 valve body bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

57. Install the detent spring (2), detent spring cover and detent spring bolt (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

58. Install the transmission fluid temperature sensor (3), the transmission fluid temperature lock plate (2), the transmission fluid temperature lock plate bolt (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

59. Connect the solenoid wire harness connectors (1).

    Courtesy of CHRYSLER GROUP, LLC

60. Install a NEW  O-ring (1) on the transmission oil filter.

    Courtesy of CHRYSLER GROUP, LLC

61. Install the transmission oil filter (2), transmission oil filter bolts (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

62. Install the transmission oil pan magnets (1).

    Courtesy of CHRYSLER GROUP, LLC

63. Install the transmission oil pan gasket, transmission oil pan, transmission oil pan bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

64. Install the bearing race, thrust bearing, bearing race (2) and using snap ring pliers install the snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

65. Apply sealant to the extension housing machine surface (1) and spread evenly.

    Courtesy of CHRYSLER GROUP, LLC

66. Install the extension housing, the extension housing bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

67. Install the eight torque converter housing bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

68. Install the Transmission Range (TR) switch (4).
69. Install the TR switch bolt (3) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
70. Install the TR switch lock washer (1) and nut (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
71. Using a suitable tool, push down the lock washer (1) tabs.

    Courtesy of CHRYSLER GROUP, LLC

72. Install the Output Speed Sensor (OSS) (2), the OSS bolt (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

73. Install the Input Speed Sensor (ISS) (2), the ISS bolt (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

74. Install the breather pipe (3), the breather pipe bracket (2), the breather pipe bracket bolt (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

75. Install the cooler tube retaining bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

76. Install the transmission cooler tube bracket bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

77. Install the torque converter.
78. Install the transmission in the vehicle. Refer to REMOVAL AND INSTALLATION .
