Electric Vehicle Control System: Warning

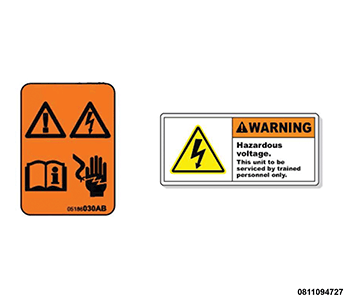

Orange is the warning color used to identify high voltage parts. These warning labels are attached to the high-voltage battery pack.
WARNING
When performing any repairs that involve contact with High Voltage or Hybrid components or systems, the technician performing repairs on the vehicle must verify that the system remains powered down during High Voltage Repairs.
- This must be done by removing the Service Disconnect.
- The High Voltage check out procedure must also be performed to ensure that the vehicle is properly powered down.
- The Service Disconnect must be secured in a safe area that no one else can access during the time of repair. It is strongly recommended that the technician place the Service Disconnect in a locked tool box or keep in the personal possession of the technician until the repair is completed.
- The technician must ensure that no one reconnects the Service Disconnect while service is being performed.
- This includes rechecking that the Service Disconnect has not been reinstalled while the vehicle was unattended.
Failure to comply with all of these warnings may result in personal injury including: BURN, SHOCK OR FATAL INJURY.
WARNING
Before performing any diagnostic or service procedure, you must thoroughly read and follow all applicable High Voltage Safety Procedures. You must perform the High Voltage Battery Power Down procedure before performing any repairs. Refer to HIGH-VOLTAGE POWER DOWN PROCEDURE .
WARNING
Be sure to utilize the proper Safety Equipment when working on any high voltage system. Failure to do so may result in serious or fatal injury.
STANDARD PROCEDURES
High Voltage Safety Procedures. Refer to HIGH-VOLTAGE SAFETY PROCEDURES .
High Voltage Power Down. Refer to HIGH-VOLTAGE POWER DOWN PROCEDURE .
High Voltage Power Up. Refer to HIGH-VOLTAGE POWER UP .
High Voltage Power Down Verification. Refer to HIGH-VOLTAGE POWER DOWN VERIFICATION .
