Switch, Power Window: Installation

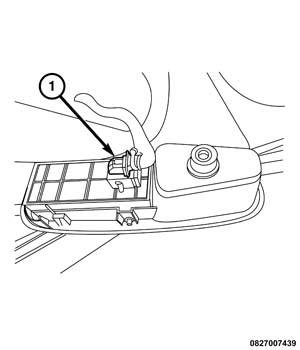

GC0158920Courtesy of CHRYSLER GROUP, LLC
  1. Align the switch to the door bezel for installation.
  2. Connect the electrical harness connector (1) to the switch.
  3. Place the switch unit in its housing and engage the front retainers.

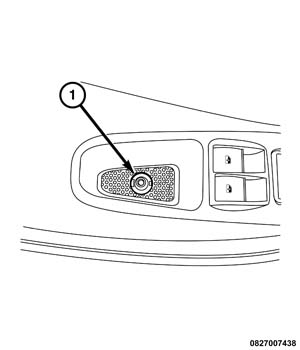

    GC0159055Courtesy of CHRYSLER GROUP, LLC
  4. Tighten the screw (1) and install the screw cover.
  5. Connect the negative battery cable.
