Outlet, Power, Universal Serial Bus: Installation

NOTE:

Check that the USB charge port is not damaged.

Courtesy of CHRYSLER GROUP, LLC

1. Install USB charge port (1a) in front floor console rear cover (1b) by engaging the retainers (1d).

   Courtesy of CHRYSLER GROUP, LLC

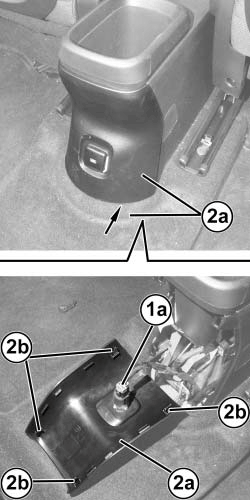

2. Connect the electrical connector (1a) then position front floor console rear cover (2a) and engage retainers (2b).
3. Connect the negative battery cable.
