Battery System (Service Information): Battery: Installation

Courtesy of CHRYSLER GROUP, LLC

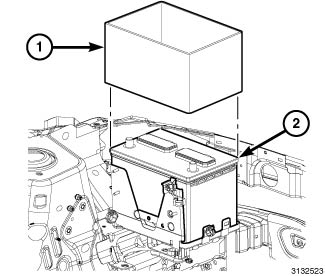

1. Install the battery (2) into the vehicle.
2. Install the battery hold down retainer.
3. Install the battery thermo cover (1).

   Courtesy of CHRYSLER GROUP, LLC

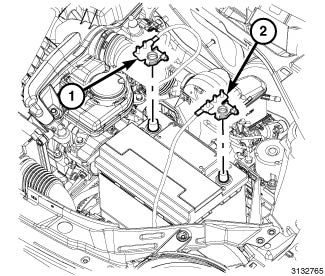

4. Connect the positive battery cable (1).
5. Connect the negative battery cable (2).

   Courtesy of CHRYSLER GROUP, LLC

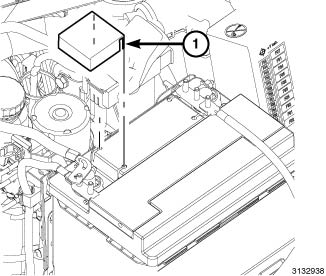

6. Install the positive battery terminal cover (1).
