Acc Module Bracket: Removal
WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL
.

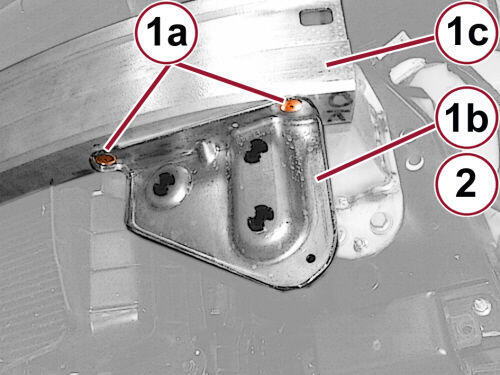

- Using a drill, remove the rivets (1a) holding the bracket (1b) to bumper reinforcement (1c).
- Remove the bracket (1b).
