Fifth Gear Power Flow

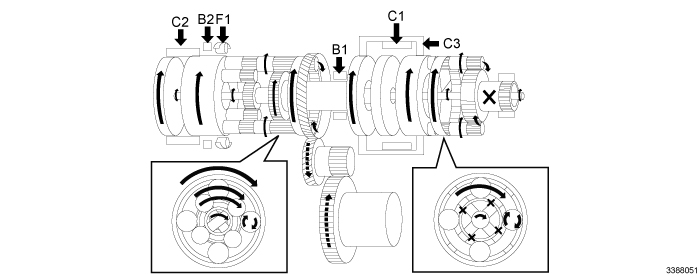

GC0153394Courtesy of CHRYSLER GROUP, LLC
FIFTH GEAR

SHIFTER POSITION RANGE SOLENOID CLUTCH NUMBER BRAKE NUMBER ONE-WAY CLUTCH
SLC1 SLC2 SLC3 SLB1 S1 S2 C1 C2 C3 B1 B2 F1
D  FIFTH  - - - - X - - X X - - -
X = in operation
