Automatic Transmission (Service Information): Removal

  1. Remove the engine and transmission as an assembly from the vehicle. Refer to REMOVAL .
    GC0152566Courtesy of CHRYSLER GROUP, LLC
  2. Remove the torque convertor access panel.
    GC0152567Courtesy of CHRYSLER GROUP, LLC
  3. Support the transmission with a suitable transmission jack.
  4. Remove torque convertor bolts.
    GC0152423Courtesy of CHRYSLER GROUP, LLC

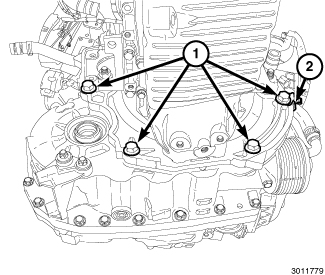

  5. Remove the upper transmission to engine block bolts.
    GC0152422Courtesy of CHRYSLER GROUP, LLC
  6. Remove the lower transmission to engine block bolts.
  7. Separate the transmission from the engine.
