Module, Door (DDM/PDM): Installation

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

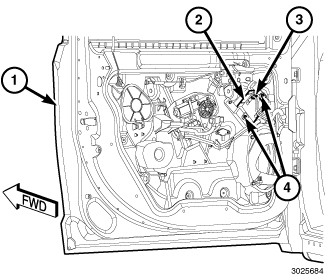

GC0139118Courtesy of CHRYSLER GROUP, LLC
  1. Position the door control module (2) to the front door hardware module carrier.
  2. Install and tighten the fasteners (4) that secure the door control module to the front door hardware module carrier. Tighten the fasteners securely.
  3. Reconnect each of the electrical connectors (3) to the connector receptacles of the door control module.
  4. Reinstall the trim panel to the inside of the front door (1). Refer to PANEL, DOOR TRIM, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  6. The Manual Relearn procedure should be performed following service of a door control module so that the module can learn the correct hard stops of the power window regulator. Refer to STANDARD PROCEDURE .
