Module, Drivetrain Control (DTCM): Installation
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

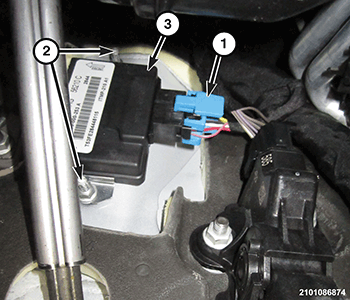

- Install the Drive Train Control Module (DTCM) (3) in the vehicle
- Install the DTCM fasteners (2) and tighten to the proper (Torque Specifications).
- Install the wire harness connector (1).
- Install the lower front close out panel.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
