Module, Powertrain Control (Pcm): Removal: Gas

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Components removed for clarity.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

USE THE SCAN TOOL TO REPROGRAM THE NEW POWERTRAIN CONTROL MODULE (PCM) WITH THE VEHICLES ORIGINAL IDENTIFICATION NUMBER (VIN) AND THE VEHICLES ORIGINAL MILEAGE. IF THIS STEP IS NOT DONE, A DIAGNOSTIC TROUBLE CODE (DTC) MAY BE SET.

To avoid possible voltage spike damage to PCM, ignition key must be off, and the negative battery cable must be disconnected before unplugging the PCM connectors.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the air cleaner body. Refer to REMOVAL .

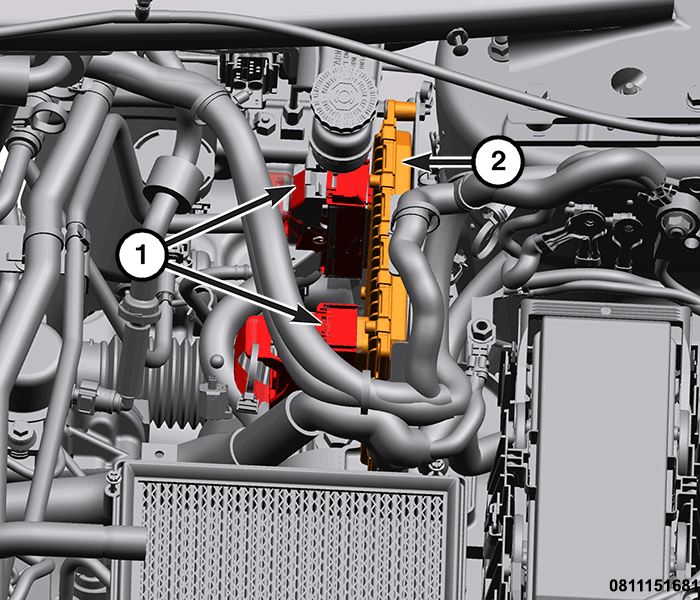

Unlock and disconnect the electrical connectors (1) from the PCM (2).
NOTE:
Components removed for clarity.

Courtesy of CHRYSLER GROUP, LLC

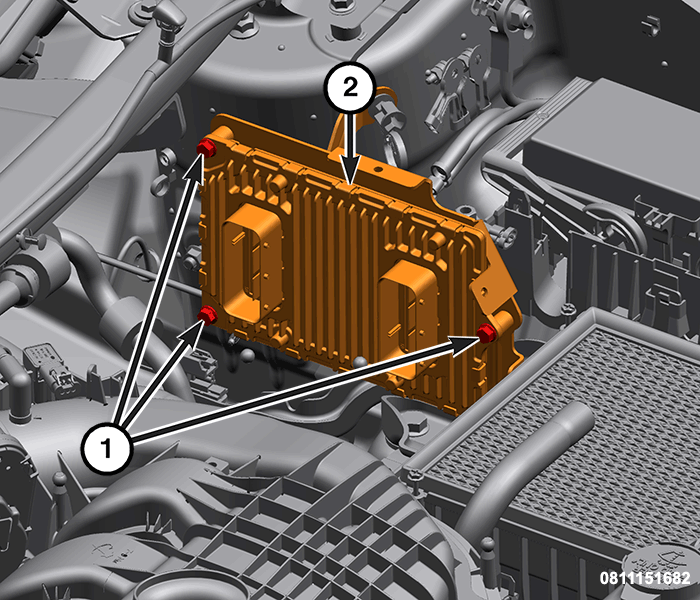

Remove the fasteners (1) and remove the PCM (2) from the vehicle.
