Locking Hubs - Warn Selective Spring-Lock: Identification

All Warn Hubs employ BRASS control knobs to engage and disengage locking mechanism. Model number of hub is stamped into recesses of control knob. Model numbers for Warn Selective Spring-Lock Hubs are as follows:

M166, M167, M175, M197

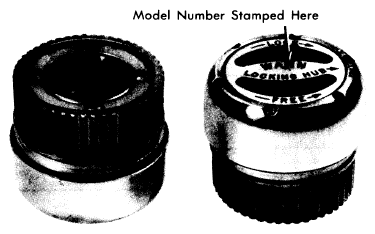

Fig 1: External View of Infernal Type Spring-Lock Hub

Courtesy of NOT AVAILABLE

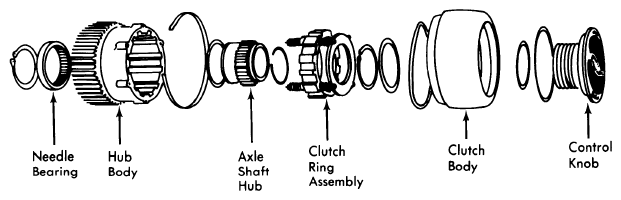

Fig 2: Exploded View of Internal Type Spring-Lock Hub

Courtesy of NOT AVAILABLE

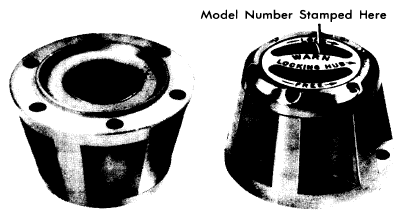

Fig 3: External View of External Type Spring-Lock Hub

Courtesy of NOT AVAILABLE
