MOTORCRAFT DURASPARK II Electronic Ignition: Operation: Distributor

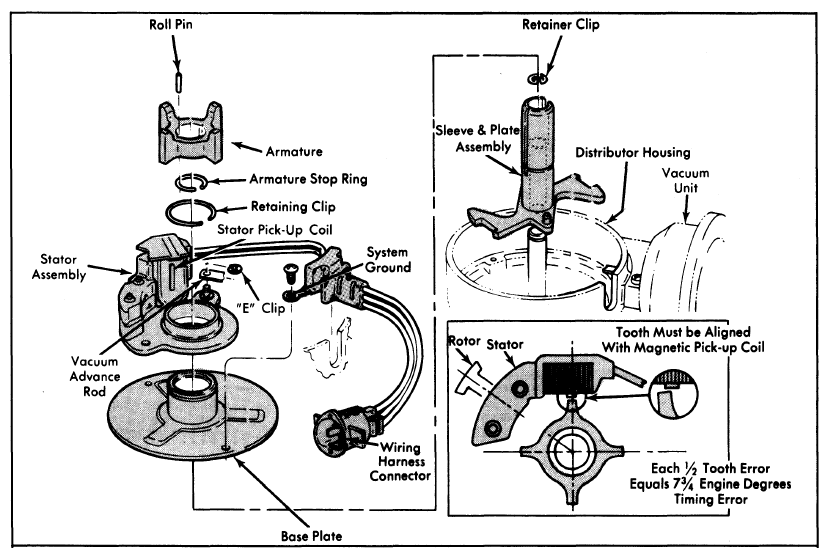

A 4-tooth armature and stator (pick-up coil) combine to signal the control module when to turn ignition coil off and on. The distributor features an adapter between cap and housing, and has centrifugal and vacuum advance mechanisms. See Figure.
