Throttle Position Sensor: Locations

Top RH Side Of Engine.:




RH Rear Of Carburetor

Applicable to: 1982-83 V8-302/5.0L & V8-351/5.8L Engines w/EEC

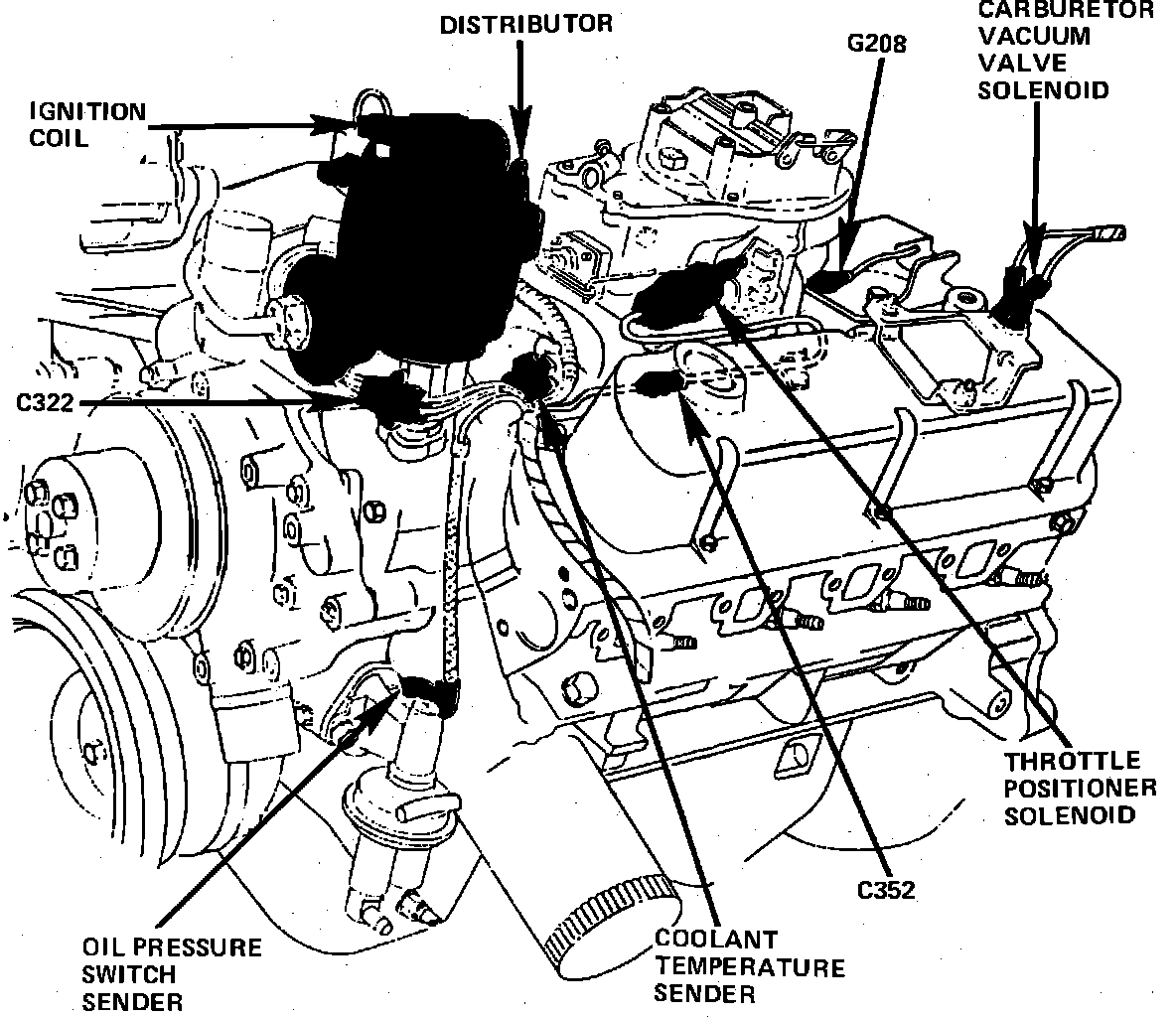

LH Side Of Engine.:




RH Rear Of Carburetor

Applicable to: 1982-83 V8-255/4.2L & V8-302/5.0L Engines
